The LAN tester utilizes high-standard connectors, a durable flame-retardant ABS resin housing, and a clear LCD display for easy-to-understand test results, making it easy to use without specialized technical expertise.

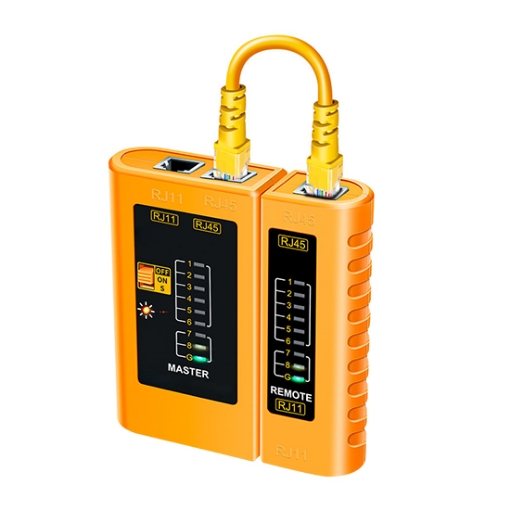

Split-unit Innovation, Dual-mode Testing
- The LAN cable tester features a split design, allowing the auxiliary unit to seamlessly integrate with the main unit. It can be quickly separated with a simple push upwards, requiring no additional tools, significantly enhancing ease of use.

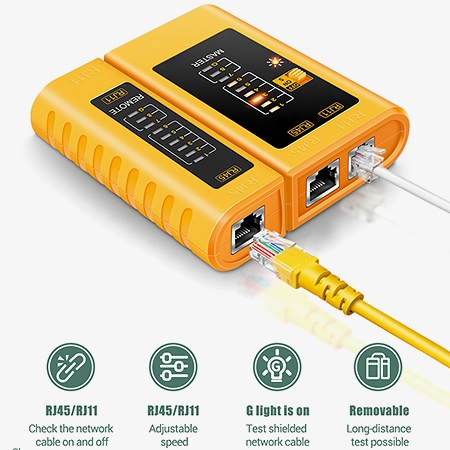

- The LAN wire tester features eight indicator lights, each corresponding to the different cores of the network cable (e.g., cores 1-8). During line testing, the indicator lights clearly indicate fault conditions such as continuity, short circuit, and crossover by flashing on and off, reducing the need for repeated data verification and misdiagnosis. Even in dimly lit equipment rooms or outdoor environments, line problems can be quickly identified, eliminating the need for repeated data verification and reducing the risk of misdiagnosis.
- The LAN cable tester offers two selectable test speeds. The default setting is constant speed testing, ideal for detailed testing of standard lines, ensuring thorough troubleshooting. The tester automatically enters the constant speed test process upon startup, eliminating the need for complex setup. For increased testing efficiency, the tester can be manually switched to the fast speed setting.
Covering Diverse Low-voltage Cable Testing Needs
- The LAN checker features a built-in intelligent power-off protection function that automatically shuts off internal circuits, preventing damage to the main unit and slave units due to overload and protecting operators from electric shock. This enhances user safety and makes it particularly suitable for line testing in complex electrical environments.
- The multi-LAN tester features universal RJ45 connectors on both the main unit and slave units, and is also compatible with RJ12 connectors (for telephone lines). This makes it suitable not only for testing standard network cables (Cat5/Cat5e/Cat6, etc.), but also for testing common low-voltage cables such as telephone lines and security surveillance cables.
- The LAN line tester's housing is constructed of high-strength ABS engineering plastic, offering excellent impact resistance. The non-slip surface ensures a secure grip even with wet hands or when wearing gloves. Furthermore, the internal circuit board is reinforced to prevent poor connections or damage caused by vibration or drops.
Applications
In the agricultural field, dew point meters are mainly used to monitor humidity in greenhouses, providing a suitable environment for the growth of crops, and thereby improving the yield and quality of agricultural products. In industrial production, dew point thermometers are essential for monitoring and controlling humidity in the air. In environmental monitoring, handheld dew point meters can be used to monitor changes in humidity in the atmosphere and provide important data for climate change research. With the development of sensor technology and signal processing technology, the measurement accuracy of dew point meters will continue to improve and meet more stringent measurement requirements.

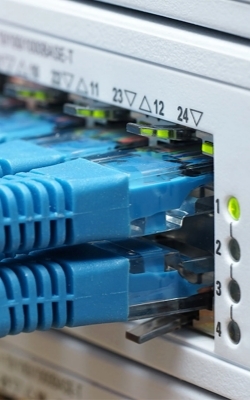

Daily Maintenance
Network Management
Troubleshooting

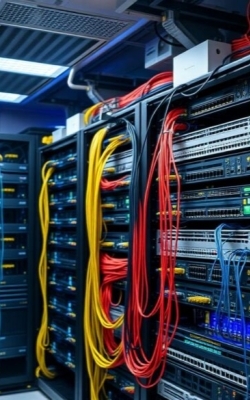

Cabling Construction
Â
| Model | SISCO-NCT-IPCX |
| Interface | RJ45, RJ11 |
| Multiplier Switch | NO gear is at uniform speed, S gear is fast |
| Function | Telephone line tracing |
| Network connectivity troubleshooting | |
| Shielded network cable testing | |
| Long-distance line alignment | |
| Open and short circuit testing | |
| Material | ABS Resin |
| Battery Model | 6V 6F22 |
| Dimensions | 92mm×27mm×103mm |
| Weight | 98g (without battery) |
Â

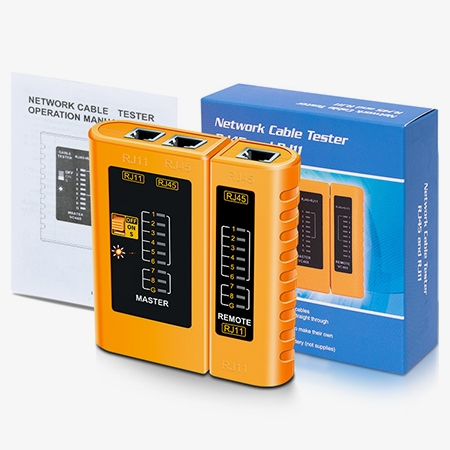

Packaged Diagram
Q1: What is a network cable tester?
A1: A network cable tester is a device used to verify the integrity of network cabling, including Ethernet cables and phone lines. It can identify wiring faults, connectivity issues, and measure cable length.
Q2: Why do I need a network cable tester?
A2: A network cable tester is an essential tool for network technicians, IT professionals, and anyone who works with network cabling. It helps to troubleshoot problems quickly and accurately, saving time and money. By using a network cable tester, you can ensure that your network is running smoothly and efficiently.
Q3: What features do network cable testers need?
A3: When choosing a network cable tester, it's important to consider the features that will be most useful for your needs. Look for a tester that can detect open, short, and miswired cables, as well as measure cable length. It should have an easy-to-read display and be able to work with different cable types. Some testers also offer additional features, such as tone generation and tracing, which can be useful for more complex networks.
Tips: What are The Advantages of The LAN Network Cable Tester's Split Design?
The split design allows for easy separation of the main and auxiliary units, allowing one person to complete remote testing. Simply bring the auxiliary unit to the other end of the cable, and the main unit will read the test results in real time. This is particularly suitable for testing long-distance network cables, such as those spanning floors or rooms. It eliminates the need for two people to work together, significantly improving work efficiency.
