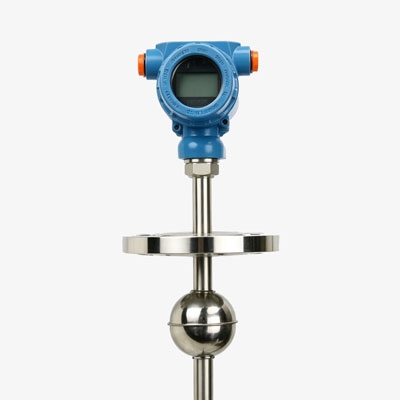

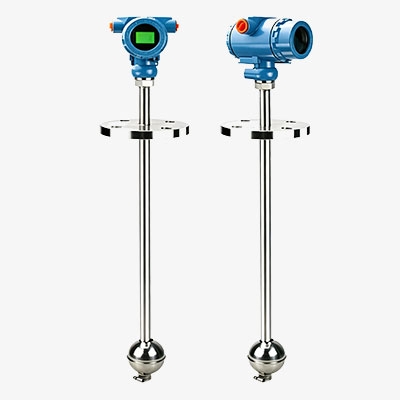

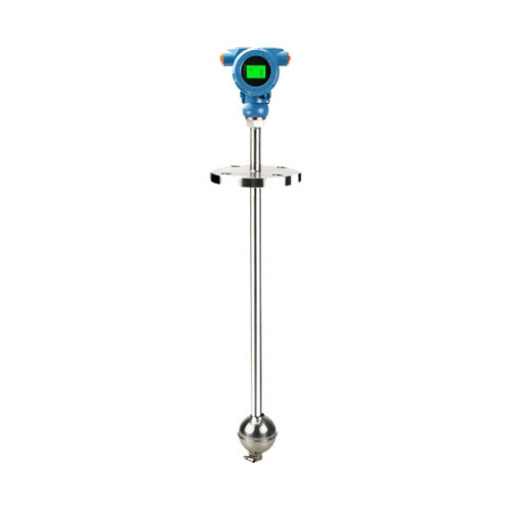

SISCO liquid level float switch features a 304/316L stainless steel housing with radial mounting. It is rated for pressure up to 32MPa and media density 0.5-2 g/cm3. The float switch employs a magnetic coupling mechanism for stable resistance conversion and offers optional PTFE lining for corrosion resistance.
Accurate Level Measurement & Smart Signal Output
- Measures liquid level from 300 mm up to 9000 mm with a repeatable accuracy of ±10 mm.
- Integrated LCD simultaneously displays level percentage and live 4- 20 mA loop current for on-site verification.
- HART protocol is superimposed on the analogue signal, enabling remote calibration and diagnostics.
- Two independently adjustable alarm setpoints allow easy configuration of high/low level limits.
- Output supports 4-20 mA, 0-10 V, 0-5 V, or RS485 Modbus to interface with PLCs and SCADA systems.
Robust Construction & Wide Environmental Tolerance
- Housing is available in 304 stainless steel, 316L, or PTFE-lined, ensuring resistance to corrosive media.
- Radial mounting design simplifies installation in tight spaces without special adapters.
- Magnetic coupling mechanism eliminates mechanical contact, reducing wear and maintenance.
- Rated for operating pressure up to 32 MPa and ambient temperatures from 20°C to +60°C.
- Compatible with media densities ranging from 0.5 to 2.0 g/cm3, covering most industrial liquids.
Applications
SISCO liquid level float switch is widely used for level measurement and control in storage tanks, pressure vessels, and process equipment. This magnetic float switch suits petrochemical, power, pharmaceutical, food, and marine industries. It reliably handles corrosive, viscous, or high-temperature liquids, providing continuous level monitoring and alarm functions in both atmospheric and pressurized systems. The float switch ensures safe and efficient liquid level management across diverse industrial environments.

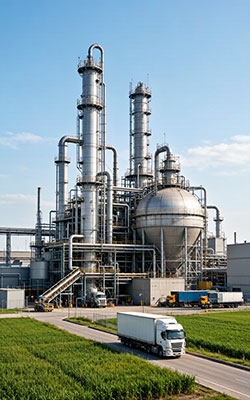

Fertilizer

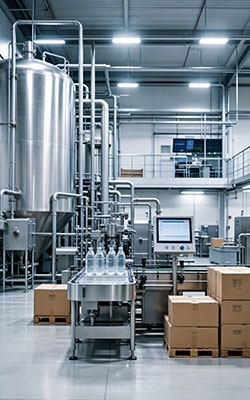

Food
Marine

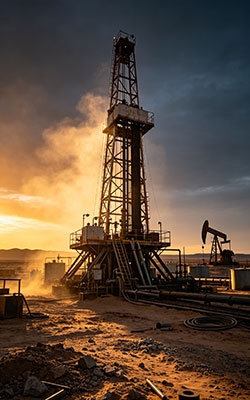

Petroleum
| Model | SISCO-LS-1R16 |
| Measuring Range | 300 ~ 9000 mm |
| Accuracy | ≤ ±10 mm |
| Medium Density | 0.5 ~ 2.0 g/cm3 |
| Pressure Rating | ≤ 32 MPa |
| Ambient Temperature | -20 ~ +60 °C |
| Remote Transmission Distance | ≤ 1000 m |
| Housing Material | Stainless steel / 304 / 316L / PTFE-lined |
| Mounting Method | Radial |
| Output Signal | 4-20 mA with HART protocol |
| Display | LCD (shows level percentage and 4-20 mA current) |
| Alarm Setpoints | Two independently adjustable high/low alarms |
Details
Q1: What measuring range and accuracy does the SISCO liquid level float switch offer?
A1: The liquid level float switch covers a measuring range from 300 mm to 9000 mm with an accuracy of ≤ ±10 mm, ensuring reliable level detection for various tank heights.
Q2: What output signals and communication options are available for this magnetic float switch?
A2: The magnetic float switch provides a standard 4-20 mA output with HART protocol, plus optional RS485 Modbus, 0-10V, or ±5V signals for flexible integration into different control systems.
Q3: What pressure and temperature limits can this liquid level float switch withstand?
A3: This level switch is rated for a maximum pressure of 32 MPa and operates in ambient temperatures from -20°C to +60°C, with housing options in 304 stainless steel, 316L, or PTFE-lined for corrosion protection.
Tips: How does a liquid level float switch work?

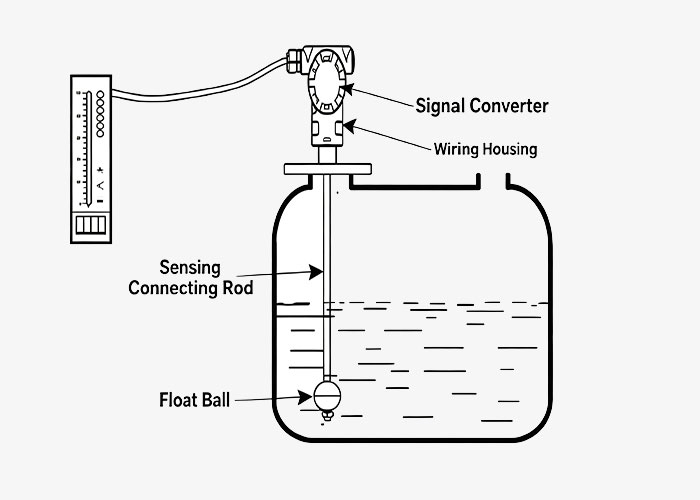

A liquid level float switch operates by using a magnetic float that rises and falls with the liquid surface inside a container. As the float moves along a guide rod, the magnetic field activates a reed switch or changes the resistance of a built-in sensor element. This resistance variation is linearly converted into a standard 4-20 mA current signal, with HART protocol superimposed for digital communication. The float switch can display the level percentage and loop current on an integrated LCD. Advanced models allow users to set high and low alarm points, and the measured data can be transmitted over distances up to 1000 m for remote monitoring and control.
