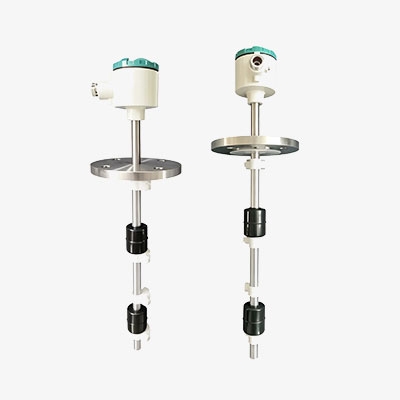

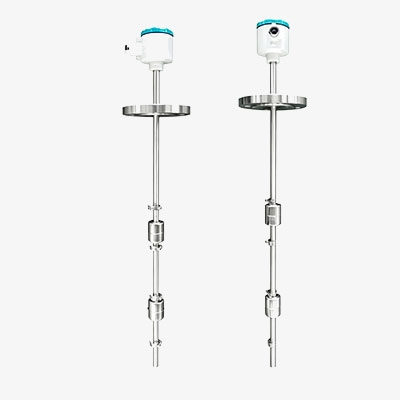

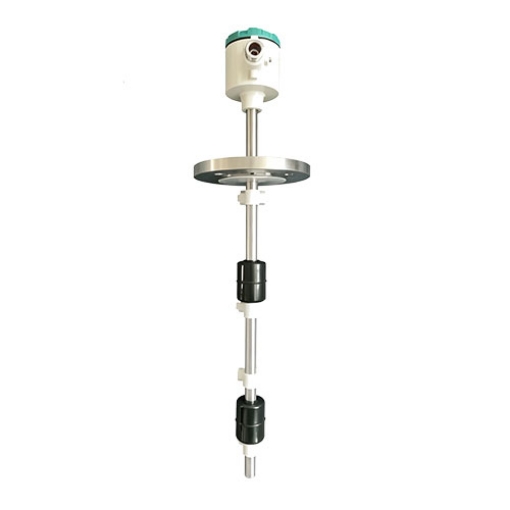

SISCO explosion-proof float level switch utilizes a magnetic float switch reed-chain principle to convert liquid height into a proportional resistance signal. The liquid level switch delivers ±5 mm or ±10 mm accuracy over –20 to 70°C media, with pressure resistance up to 10 MPa. The magnetic level switch design ensures stable 4-20mA/HART transmission without field recalibration drift.
Multi-Point Level Monitoring and On-Site Adjustment
- Up to four independent switch points with adjustable thresholds.
- Built-in LCD for real-time level, status, and output display.
- On-site push-button tuning of setpoints, deadbands, and delays.
- Self-diagnostics trigger an alarm on sensor fault or short-circuit.
Multi-Signal Output and Remote Communication
- 4-20 mA with HART for remote configuration.
- RS485 with Modbus RTU for system integration.
- Programmable relays for high/low/window alarms with delay.
- Surge and reverse-polarity protection ensure float level transmitter accuracy.
Applications
SISCO explosion-proof float level switch with magnetic float switch and 4-20mA/HART outputs is ideal for liquid level monitoring in storage tanks, process vessels, and sumps. Its stainless steel construction and Ex d IIC T6 enclosure provide reliable performance in harsh and hazardous environments.

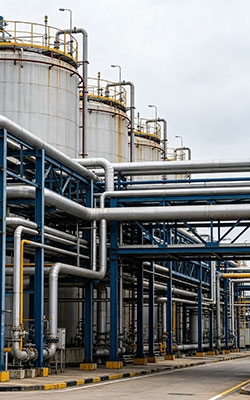

Chemical Industry

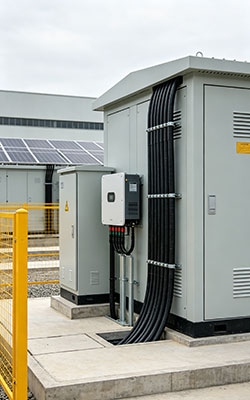

Electrical Industry

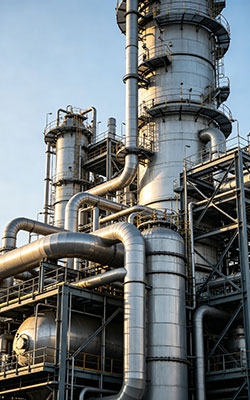

Petroleum Industry

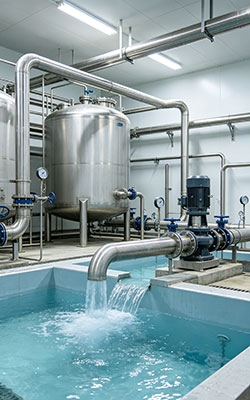

Water Treatment
Â
| Model | SISCO-LS-UHZ-C |
| Measurement Range (Rod Length) | 100 – 6000 mm |
| Power Supply | 24V DC |
| Output Signals | 4- 20 mA with HART, RS485(Modbus RTU), Relay contacts |
| Accuracy | ±5 mm or ±10 mm |
| Body Material | 304 SS, 316L SS, or 304 SS with PTFE lining |
| Float Material | 304 SS, 316L SS, or 304 SS with PTFE lining |
| Medium Temperature | –20 °C to +70 °C |
| Pressure Rating | Up to 10 MPa (customizable) |
| Enclosure Protection | Flameproof, Ex d IIC T6 Gb |
| Switch Type | Magnetic float switch with reed-chain sensing |
| Electrical Connection | Terminal block inside housing |
Q1: What range does this explosion-proof float level switch support?
A1: The rod-type sensor covers 100 mm to 6000 mm, accommodating tanks of varying depths. Custom lengths are available, and the magnetic float switch delivers ±5 mm repeatable accuracy across the entire span.
Q2: What outputs can this magnetic level switch provide?
A2: It offers a 4-20 mA loop with HART protocol, an RS485 port with Modbus RTU, and multiple relay contacts. This versatility enables direct connection to PLCs, DCS, or standalone alarm systems without extra converters.
Q3: Why does this float level switch need Ex d IIC T6 Gb?
A3: This flameproof rating contains internal explosions and stops flame propagation. The T6 class limits surface temperature to 85°C, ensuring safe operation with hydrogen, acetylene, and other IIC-group gases in Zone 1 hazardous areas.
Tips: How to commission this 100- 6000 mm explosion-proof float level switch?
- Verify the 4-20mA/HART loop integrity. Connect a multimeter in series to check the current output matches the actual level before connecting to the control system.
- Test RS485 communication with Modbus RTU. Send a read command from the host to confirm the float level transmitter responds with correct register values.
- Simulate high and low level conditions. Manually move the magnetic float switch to trigger each setpoint and verify relay contacts change state as programmed.
- Check the LCD for consistent readings. Ensure the percentage and bar graph move smoothly with float travel, indicating the magnetic level switch sensor is functioning properly.
- Record that the Ex d IIC T6 Gb housing is properly closed. Verify all cover screws are tightened, and the cable gland is securely fastened before energizing the system.
