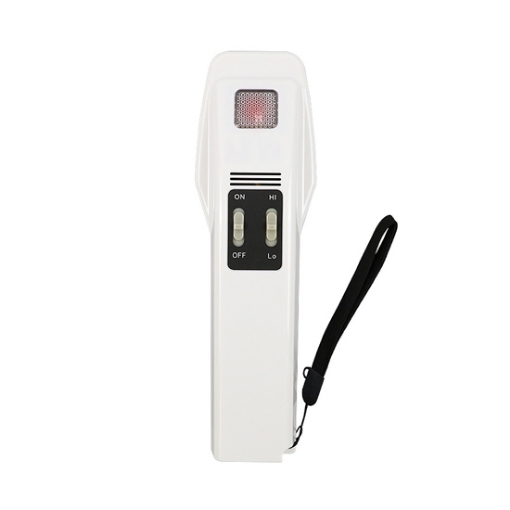

This needle detector machine is suitable for factory security inspections in clothing and toy manufacturing, and can also cover the detection of ferromagnetic items in various scenarios, such as food and wood processing. It is a cost-effective and portable inspection tool for small and medium-sized enterprises. (Battery not included)
Precise Needle Detection, Interference-Resistant, and Adaptable
- The magnetic field induction detection method, combined with the broken needle magnetic adsorption function (adsorption range of 5mm), not only accurately locates ferromagnetic items such as broken needles, but also actively attracts detected broken needles.
- The detection height can operate effectively between 10mm and 50mm, allowing the detector to scan without contacting the product surface, protecting sensitive materials. It can scan a wider area at once, improving detection speed and coverage.
- High and low sensitivity settings are available. In high mode, it can detect broken iron needles from 0.5mm to 0.8mm, while low mode is suitable for objects from 0.9mm to 1.2mm, balancing accuracy with practicality against everyday metal interference.
Lightweight and Handheld, Wirelessly Powered

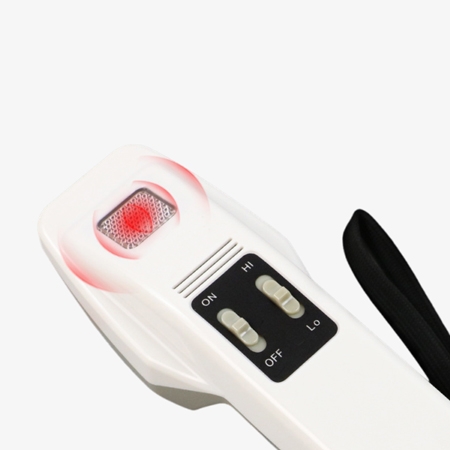

- Features a dual alarm system (sound and light). When metal impurities are detected, a flashing red light and a beeping sound effectively draw attention, even in noisy work environments, ensuring the timely detection of potential safety hazards or quality issues.
- Convenient one-button sensitivity adjustment. The panel features high and low sensitivity settings, allowing users to easily switch between different sensitivity levels according to their actual testing needs.
- Lightweight and comfortable to hold, even during extended testing sessions, it won't cause hand strain. Battery powered, it eliminates the need for power cords, allowing for flexible movement to different workstations in the workshop, warehouse corners, and other locations for testing.
Application
In the food processing industry, it is used to detect tiny metal needles or impurities in candy, chocolate, pastries, meat, or packaged foods; in the pharmaceutical and health product industry, it is used to ensure that tablets, capsules, or liquid products are free of metal contamination; in the textile and apparel industry, it can detect accidentally leftover sewing needles or metal fragments in fabrics, knitwear, or garments; and in other packaging or industrial production scenarios, it ensures that the final product meets safety standards before leaving the factory and prevents potential safety risks.
Apparel Industry
Pharmaceutical Industry
Textile Industry
Food Processing
Â
| Model | SISCO-HND-ST30C |
| Detection Method | Magnetic field induction |
| Detection Sensitivity | High setting Feψ 0.5mm~0.8mm, Low setting 0.9mm~1.2mm |
| Sensor Adjustment | High/Low setting adjustment |
| Detection Width | 50mm |
| Detection Height | 10mm~50mm |
| Alarm Method | Audible and visual alarm |
| Power Supply | 6F11-9V battery (sold separately) |
| Power | Standby <5mA, audible and visual alarm <30mA |
| Dimensions | 190mm×52mm×42mm |
| Weight | 280g |
Q1: What is a needle detector?
A1: A needle detector is a precision metal detection device designed to identify small metal contaminants, such as needles or wire fragments, in food, textiles, or pharmaceutical products.
Q2: How does a needle detector work?
A2: The needle detector machine works by generating an electromagnetic field. When a metal object passes through the detection area, it disturbs the field, triggering an alarm or stopping the production line.
Q3: How do I calibrate a needle detector?
A3: Use standard test needles of different sizes and materials. Follow the manufacturer’s instructions to adjust sensitivity settings so the detector reliably identifies the smallest relevant contaminants.
Tips: Proper Use of the Needle Detector
Place the hand needle detector machine in a stable environment free from strong magnetic interference. Power on and calibrate according to the instruction manual. Use a standard test needle to confirm the sensitivity. Ensure the product being tested passes through the detection area neatly and evenly, while maintaining an appropriate transmission speed. If an alarm is triggered during the detection process, promptly check and handle any abnormalities. After the operation, clean the detection port regularly and recalibrate to maintain accuracy.
