The network cable checking device offers a flexible power supply and long battery life. Its comprehensive testing capabilities allow it to test various cables and Ethernet ports, and it is compatible with multiple cable types, delivering accurate and reliable performance.
Precise Fault Vision
- The network wire tester integrates cable testing, audio locating, and PoE testing, supporting length measurement, wiremap verification, remote ID recognition, Ethernet port speed testing, and PoE device testing, covering full-link diagnostic needs from the physical layer to the power layer.
- The network cable tester supports cable length testing up to 460 meters with an accuracy of ±4% or ±0.6 meters (whichever is greater). It displays fault locations proportionally using a wiring diagram, accurately identifying single-line or multi-device faults such as breaks, shorts, mismatched wires, and split pairs, improving troubleshooting efficiency.
- The network wire tester features both digital and traditional analog audio modes. The digital audio has strong interference immunity and accurately locates the target cable; the analog audio is compatible with traditional probes, providing flexible adaptation to various field environments and preventing misjudgments.
Designed for Harsh Environments
- The network cabling and cable testing device features a monochrome LCD display with a backlight, ensuring clear viewing of test data even in low-light conditions, making operation and results easier.
- The compact design supports multiple battery types, including AA alkaline, lithium, and NiMH batteries, with a typical battery life of 20 hours, making it suitable for extended operations outdoors and in confined spaces.
- Compatible with twisted pair cables (UTP/FTP/SSTP) and coaxial cables (75Ω/50Ω/93Ω), it supports user-defined NVP (nominal velocity of propagation) calibration. The backlit LCD clearly displays results, and the operation is intuitive, making it suitable for both engineering-level and routine maintenance scenarios.
Applications
In the agricultural field, dew point meters are mainly used to monitor humidity in greenhouses, providing a suitable environment for the growth of crops, and thereby improving the yield and quality of agricultural products. In industrial production, dew point thermometers are essential for monitoring and controlling humidity in the air. In environmental monitoring, handheld dew point meters can be used to monitor changes in humidity in the atmosphere and provide important data for climate change research. With the development of sensor technology and signal processing technology, the measurement accuracy of dew point meters will continue to improve and meet more stringent measurement requirements.
Daily Maintenance
Network Management
Troubleshooting
Cabling Construction
Â
| Model | SISCO-NCT-MS2100 | |
| Test Connectors | Shielded 8-pin modular jack accepts 8-pin modular(R45) and 4-pin modular (RJ11) plugs. | |
| MicroScanner2 | F-connector for coaxial cable. | |
| Power | Battery type | 2 AA(NEDA 15A, IEC LR6) alkaline batteries |
| Battery life | 20 hours of typical use | |
| Other compatible battery types | 2 AA photo lithium, NIMH, NICAD | |
| Display | Monochrome LCD with backlight | |
| Dimensions and Weight | 7.6cmx16.3cmx3.6cm, 363g (with batteries installed and wire map adapter attached) | |
Â

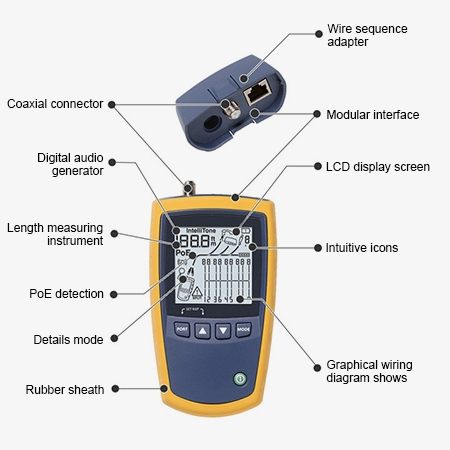

Structure Diagram
Q1: What is a network cable tester?
A1: A network cable tester is a device used to verify the integrity of network cabling, including Ethernet cables and phone lines. It can identify wiring faults, connectivity issues, and measure cable length.
Q2: Why do I need a network cable tester?
A2: A network cable tester is an essential tool for network technicians, IT professionals, and anyone who works with network cabling. It helps to troubleshoot problems quickly and accurately, saving time and money. By using a network cable tester, you can ensure that your network is running smoothly and efficiently.
Q3: What features do network cable testers need?
A3: When choosing a network cable tester, it's important to consider the features that will be most useful for your needs. Look for a tester that can detect open, short, and miswired cables, as well as measure cable length. It should have an easy-to-read display and be able to work with different cable types. Some testers also offer additional features, such as tone generation and tracing, which can be useful for more complex networks.
Tips: Can a Network Tester Help Troubleshoot Network Slowdowns or Instability?
A network tester can help troubleshoot network slowdowns or instability. It can detect physical and data link layer faults, such as broken cables, poor connections, signal interference, bandwidth bottlenecks, and abnormal device performance. Using features like ping tests, throughput tests, and port status analysis, it can pinpoint the source of the problem, such as the router, switch, terminal device, or transmission line. Therefore, using a network tester can quickly narrow down the scope of the problem, improve troubleshooting efficiency, and provide a scientific basis for subsequent repairs.
