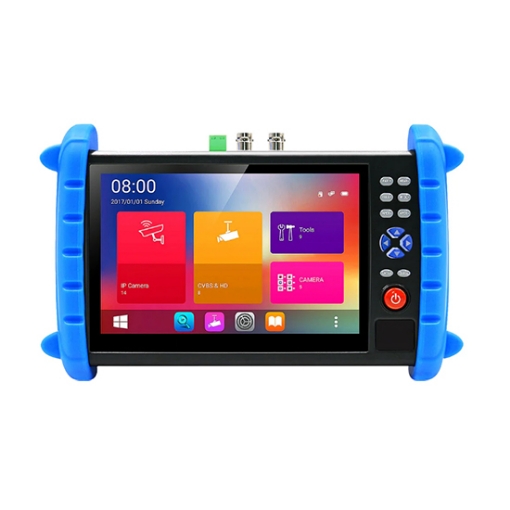

The PoE Network Tester is feature-rich, integrating network camera testing, analog camera testing, cable testing, power output, and network tools, making it an essential tool for security surveillance and structured cabling projects.
The default accessories include: Gigabit network cable test box, 7800mAh battery, RS485 control cable, power output conversion cable, BNC video cable, RJ45 to BNC connector, and BNC to alligator clip. The multimeter probe and cable finder need to be purchased separately.
A Versatile Cable Diagnostic Expert

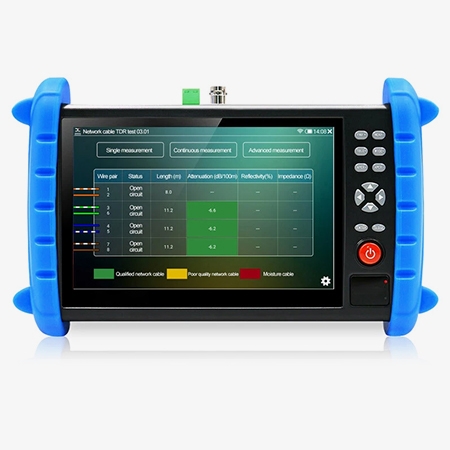

- TDR breakpoint testing, with a maximum detection distance of 1500m, easily detects power outages in cables such as power lines, telephone lines, network cables, coaxial cables, elevator cables, and elevator cables. Test results can be locked and generated into reports.
- The Ethernet PoE tester supports three signal modes: standard network cable tracing, PoE switch cable tracing, and coaxial cable tracing. It's suitable for both live and loaded cables, is noise-free and interference-resistant, features adjustable signal receiver sensitivity, and has a maximum tracing distance of 1000m.
- The network cable tester with PoE finder supports 4K H.265 IP camera testing, displays video images in real time without delay, and allows for video capture, recording, and playback. The built-in IP-Discovery function automatically switches the instrument's IP address to the same network segment as the camera, eliminating manual configuration.
Efficient and Intelligent Workstation
- The 7800mAh large-capacity battery and 7-inch HD IPS display offer up to 16 hours of battery life. It supports intelligent fast charging, with a 10-minute charge providing 40 minutes of use and a full charge in just 3.5 hours.

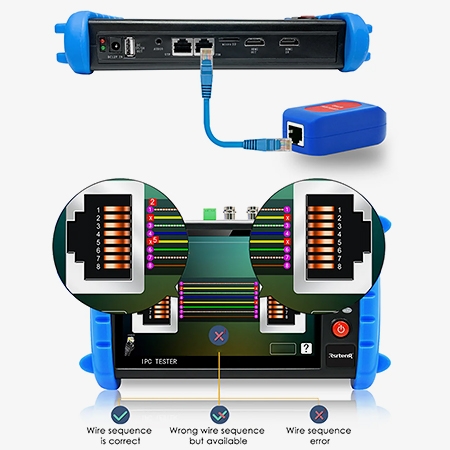

- The Ethernet tracker can visually display which end of the network cable's RJ45 connector is faulty, and supports both cable tracing and network fault detection. It also supports 60V live, noise-free tracing, combining cable tracing and network testing for doubled efficiency.
- The Ethernet cable analyzer supports copying, moving, and renaming of local storage (built-in SD + external SD/U disk) files, and supports FTP remote management (accessing instrument storage via a computer within the LAN without removing the card).
Application
The network cable tester is an essential tool used in the field of network and data communication systems. It is primarily used to test the continuity, connectivity, and performance of network cables and wiring. A network cable tester is commonly used in different industries, including IT, telecommunications, security systems, and home automation.
Â
| Mdoel | SISCO-NCT-IPCX |
| Touch Screen | 7-inch G+G structure capacitance screen |
| LCD Screen | 7-inch resolution 1920×1200 IPS HD full view |
| Ethernet Port | 10/100/1000M adaptive |
| WIFI | Built-in wireless WIFI, speed 150M |
| IP Camera Test | 4K H.265 IP camera test, video image real-time display without delay, support video snapshot, recording, and playback |
| ONVIF | ONVIF tool supports DAHUA, HIKVISION, ACTI, SAMSUNG, and more than 30 manufacturers' private protocols and customized, supporting camera mobile client installation |
| PTZ Control | Support Pelco-D/P, Samsung, Panasonic, etc., more than 30 protocols |
| CVBS Analog Camera Test | 1 channel CVBS analog signal input, supports PAL/NTSC format adaptation |
| HD Camera Test | Support HD TVI 8MP, CVI 8MP, AHD 5MP |
| Video Image Zoom | Real-time enlarged moving HD video image, max enlarge 8 times |
| Cable Test | Built-in cable testing tool, check cable sequence and breakpoint, etc |
| Audio Test | One channel audio signal input for testing, which can be recorded and saved |
| Optical Power Meter | Test optical fiber parameters |
| DC12V Power Output | DC12V power output, max current 3A, provide temporary power for cameras |
| DC24V Power Output | DC24V power output, max current 1A, provide temporary power for cameras |
| PoE Power Output | 48V standard PoE output provides PoE power for cameras |
| DC5V Power Output | Provide temporary power for USB-powered cameras or emergency power for mobile phones, max current 2A |
| PSE Voltage Test | Display PoE power supply device voltage and circuit condition |
| HDMI Video Input Test | Input an HD video image into the instrument to test the video recorder |
| RS485 Serial Port Tool | Can send or receive any data or hex data |
| Power Charger | DC 12V/2A |
| Battery | Built-in 7.4V polymer lithium battery, capacity 7800mAh, can workcontinually for 8-10 hours |
| Internal SD Storage | 8G |
| Working Temperature | -10℃~+50℃ |
| Working Humidity | 30%~90% |
| External Size | 23cm×14cm×4.5cm |
| Weight | 0.9kg |
Â

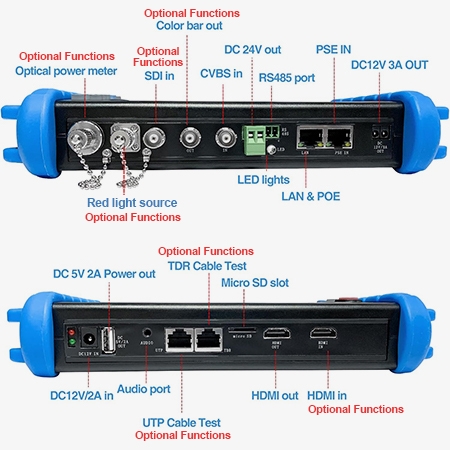

Structure Diagram
Q1: What is a network cable tester?
A1: A network cable tester is a device used to verify the integrity of network cabling, including Ethernet cables and phone lines. It can identify wiring faults, connectivity issues, and measure cable length.
Q2: Why do I need a network cable tester?
A2: A network cable tester is an essential tool for network technicians, IT professionals, and anyone who works with network cabling. It helps to troubleshoot problems quickly and accurately, saving time and money. By using a network cable tester, you can ensure that your network is running smoothly and efficiently.
Q3: What features do network cable testers need?
A3: When choosing a network cable tester, it's important to consider the features that will be most useful for your needs. Look for a tester that can detect open, short, and miswired cables, as well as measure cable length. It should have an easy-to-read display and be able to work with different cable types. Some testers also offer additional features, such as tone generation and tracing, which can be useful for more complex networks.
Tips: What are The Advantages of a Network Cable Tester with POE Functionality?
The core advantage of a network tester with POE functionality is that it can visualize complex POE power supply issues, greatly improving installation and troubleshooting efficiency. It not only quickly diagnoses network cable connectivity and cable sequencing, but also instantly identifies whether a POE switch is providing power, its power supply standard, voltage, power line pairs, and polarity. This effectively prevents the risk of power failures that could cause devices like cameras and access points to fail to power on or even burn out, making it an indispensable tool for installing and debugging POE equipment.
Thank you for buying industrial test and measurement equipment on SISCO.com, all products sold by SISCO and the partner cover a 12 months warranty, effective from the date of receiving the products.
What is covered?
SISCO is responsible for providing free spare parts, and free technical support to assist the customer to repair the defective products until the problem is solved.
What is not covered?
- Product purchased from anyone other than a SISCO store or a SISCO authorized reseller.
- Expendable parts.
- Routine cleaning or normal cosmetic and mechanical wear.
- Damage from misuse, abuse or neglect.
- Damage from use of parts other than SISCO approved.
- Damage from use outside the product’s usage or storage parameters.
- Damage from use of parts not sold by SISCO.
- Damage from modification or incorporation into other products.
- Damage from repair or replacement of warranted parts by a service provider other than a SISCO authorized service provider.
- Damage caused by the application environment not meeting the product usage requirements and the failure to perform preventive maintenance.
