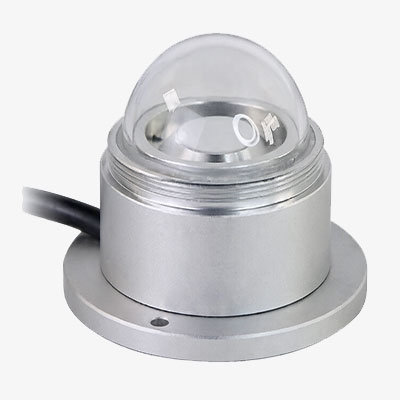

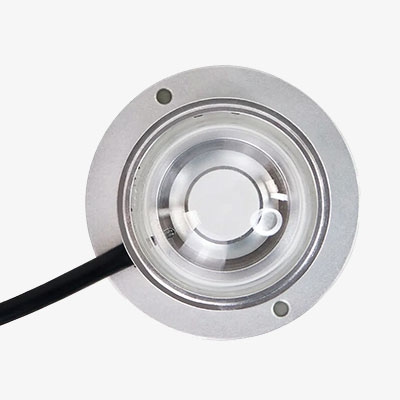

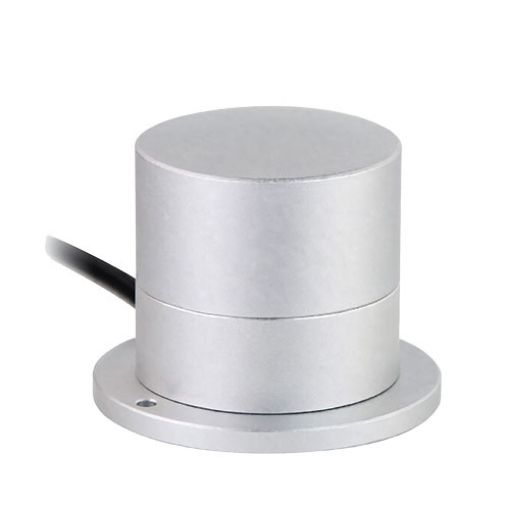

SISCO pyranometer solar radiation sensor features an aluminum alloy housing and IP67 protection for outdoor measurement conditions. Its compact design and low power consumption support integration into monitoring equipment.
Solar Radiation Measurement
- Measures reflected radiation with the sensing surface facing downward.
- Monitors solar radiation incident on inclined surfaces.
- Captures scattered radiation when a shade is added.
- Works with a data logger to record sunshine duration.
Environmental Adaptability
- Designed for outdoor solar radiation monitoring.
- An aluminum alloy housing provides structural protection.
- Low power consumption reduces the power requirements of monitoring equipment.
- Multiple output options support integration with different data acquisition systems.
Applications
SISCO pyranometer solar radiation sensor is suitable for meteorological observation, solar energy monitoring, agricultural research, construction material aging assessment, and atmospheric pollution monitoring, providing solar radiation measurements for environmental data collection and analysis.
Agricultural Research

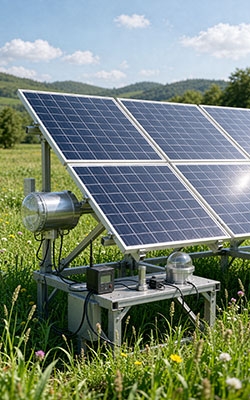

Solar Energy Monitoring
Material Aging Assessment
Atmospheric Monitoring
| Model | SISCO-RADS-RK200-04 |
| Spectral Range | 300–1100 nm |
| Measurement Range | 0–1500 W/m² |
| Resolution | 1 W/m² |
| Output Signal | 0–5V, 4–20mA, RS485 |
| Supply Voltage | 5V DC, 12–24V DC |
| Response Time | ≤500 ns (95%) |
| Nonlinearity | ≤±3% |
| Cosine Correction | ≤±10% (solar elevation angle = 10°) |
| Stability | ≤±2%/year |
| Temperature Effect | ±0.08%/°C |
| Operating Temperature | -40°C to +80°C |
| Ingress Protection | IP67 |
| Housing Material | Aluminum alloy |
| Power Consumption | 0.2 W |
| Storage Conditions | 10°C to 60°C, 20%–90% RH |
| Weight (Unpacked) | 420 g |

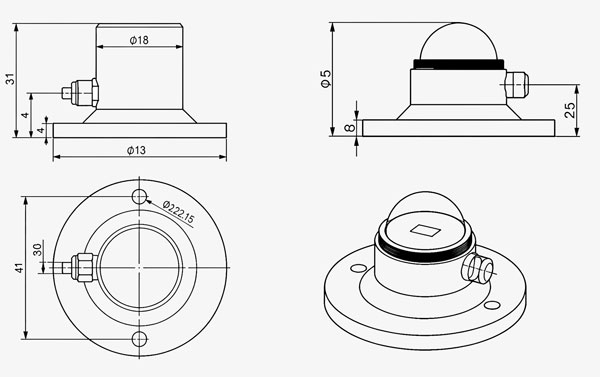

Dimensions (unit: mm)

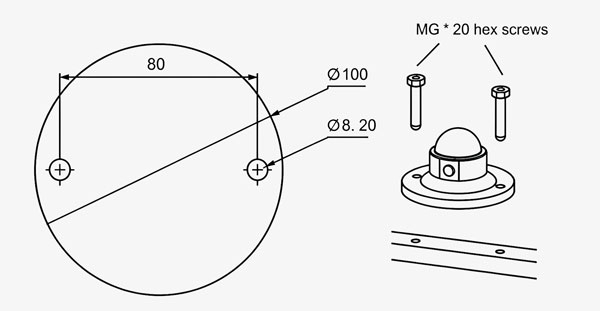

Mounting

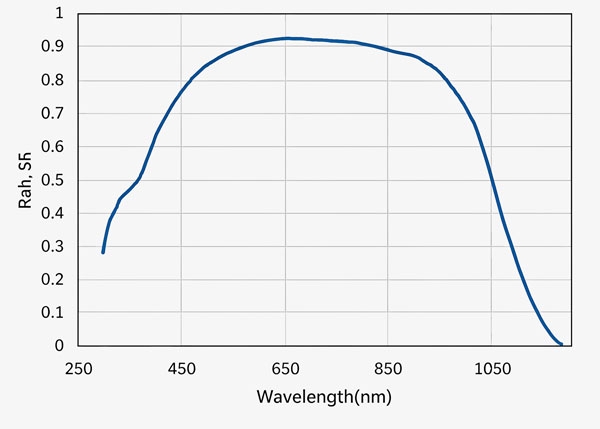

Spectral Response
Q1: What factors affect the measurement accuracy of a pyranometer solar radiation sensor?
A1: Solar elevation angle, temperature variations, sensor orientation, and shading can affect measurements. Correct installation and appropriate calibration help maintain measurement quality.
Q2: How can a pyranometer solar radiation sensor measure sunshine duration?
A2: When connected to a data logger, the sensor can support sunshine duration recording. The product documentation defines sunshine duration using a direct solar irradiance threshold of 120 W/m².
Q3: Where should a pyranometer solar radiation sensor be installed for reliable measurements?
A3: Choose an unobstructed location with good sky exposure. Avoid nearby structures, trees, or other objects that may cast shadows or interfere with incoming solar radiation.
Tips: How can measurement errors be reduced when using a pyranometer solar radiation sensor?
- Install the sensor in an unobstructed location to minimize shading from nearby objects.
- Keep the sensing surface clean to prevent dust or debris from affecting incoming radiation.
- Select the appropriate output signal and supply voltage for the connected data acquisition system.
- Follow the recommended installation orientation when measuring incident, reflected, or scattered radiation.
