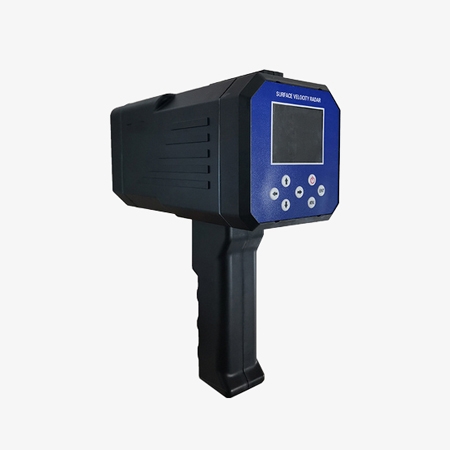

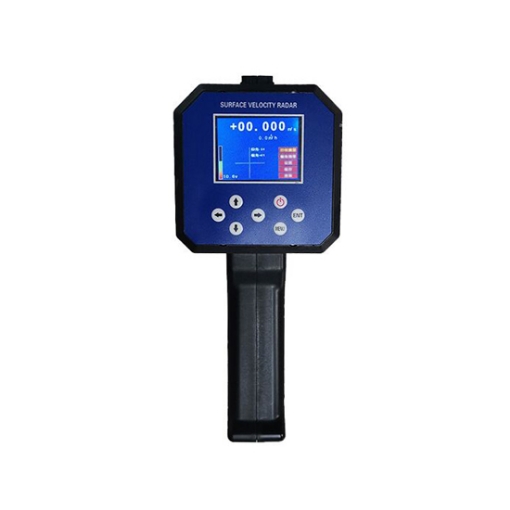

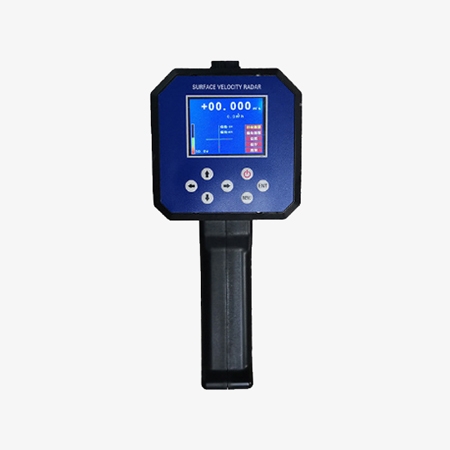

The waterproof portable radar flow meter is engineered for field durability with IP67 protection, ensuring reliable operation in rain and harsh outdoor environments. Its integrated angle sensor automatically adjusts for vertical and horizontal deviations, delivering improved measurement accuracy.
Handheld Design for Single-User Operation
- Portable radar flow meter designed for single-person operation, easy to carry and use in the field.
- Clear display with simple interface for quick and intuitive operation.
- Non-contact measurement ensures accurate readings without influence from sediment, debris, or water corrosion.
- Multiple measuring modes available, supporting both single measurement and continuous monitoring up to 30 minutes.
Rugged and Waterproof Structure
- Built-in rechargeable battery provides up to 20 hours of continuous use for long fieldwork.
- Integrated angle sensor automatically corrects vertical and horizontal angles for precise measurement results.
- Durable housing with IP67 waterproof protection, reliable for outdoor and rainy environments.
- The handheld radar type flow meter has a measuring distance of up to 200 meters, making it suitable for wide application scenariosde application scenarios.
Applications
SISCO radar flow meter is widely used for velocity monitoring in channels, rivers, sewage systems, and oceans. It is also essential for flow measurement in railway bridge construction, flood control and emergency response, sewage discharge monitoring, and other on-site measurement applications.
Ocean Current Detection
Sewage Flow Rate Detection
Wastewater Detection
Flood Prevention Detection
Â
| Model | SISCO-FLOW-LB12 |
| Measuring Range | 0.05-20 m/s |
| Measurement Accuracy | 2% |
| Operating Temperature | -30-+70°C |
| Radio Transmission Angle | 12° |
| Standard Radio Wave Transmission Power | 10mW |
| Radio Frequency | 24GHz |
| Waterproof Rating | IP67 |
| Measurement Range | ≤100 m |
| Weight | 700g |
Q1: How does the radar flow meter work?
A1: The radar flow meter uses non-contact radar technology to measure surface velocity by detecting Doppler shifts in reflected signals, ensuring accurate flow measurement without being affected by sediment or water conditions.
Q2: Is the radar flow meter suitable for all types of water bodies?
A2: Yes, it can be used in various environments, including rivers, channels, sewage systems, oceans, and flood monitoring sites, as it operates effectively regardless of water turbidity or debris.
Q3: What are the power supply options for the radar flow meter?
A3: It is powered by a high-capacity lithium-ion battery, supporting over 10 hours of continuous operation, and can be charged via AC power, vehicle charging, or a portable power bank.
Tips: Can the handheld radar flow meter be used outdoors in harsh conditions?
Yes. The handheld radar flow meter is specifically designed for outdoor field applications and built with IP67 waterproof protection. This means it can withstand rain, splashes, and exposure to dusty or humid environments without affecting its performance. The rugged structure ensures durability even in challenging conditions such as riverbanks, irrigation channels, or construction sites. Combined with long battery life and non-contact radar technology, it provides reliable measurements for hydrology, water resource management, and environmental monitoring in all-weather situations
