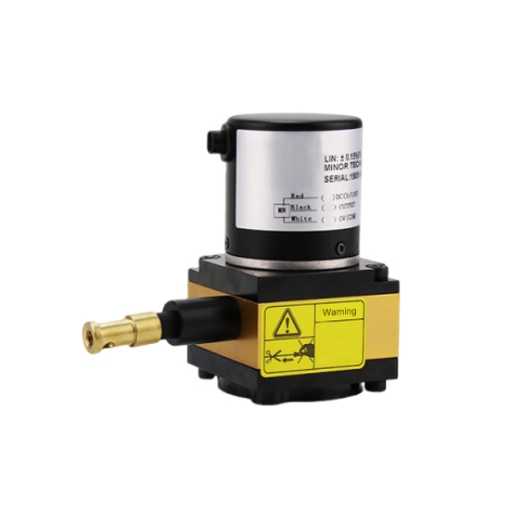

The draw wire displacement sensor offers multiple output methods to meet the needs of different users and is widely used in various industrial automation fields, providing users with reliable displacement measurement solutions.
Stable Operation and Long-term Reliability
- Multiple signal outputs are adaptable to diverse industrial control scenarios. The string displacement sensor offers both digital and analog output methods, including parallel output, serial output, SSI interface, bus, Profibus, and CAN0pen.
- Precise measurement performance, suitable for short-distance, high-precision requirements. It can accurately measure linear distances from 0 to 1000 mm with a resolution up to 0.008 mm.
- Stable operation ensures long-term reliable use. The product has a working tensile force of approximately 5 N, a maximum reciprocating speed of 1000 mm/s, and a wire diameter of 0.6 mm, combining strength and flexibility.
Standard Interface for Convenient Data Acquisition
- Compact structure for easy installation. It features a spare mounting reference surface, supports multiple installation methods, requires minimal installation space, is easy to install, requires no guide, and mechanical tolerances do not affect measurement accuracy.
- Rugged and durable structure, adaptable to harsh working environments. The housing is made of aluminum alloy with an anodized surface, making it sturdy, wear-resistant, and pressure- and shock-resistant. The stainless steel wire rope is highly corrosion-resistant, strong, non-stretchable, and has a long service life.

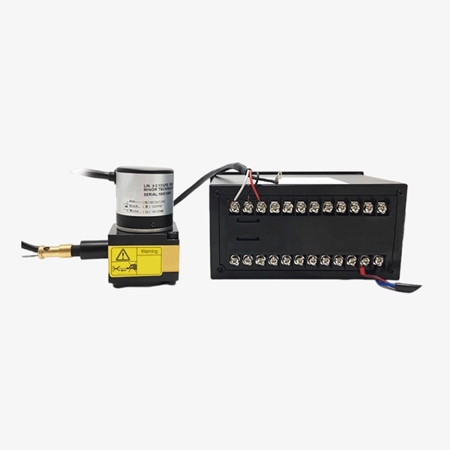

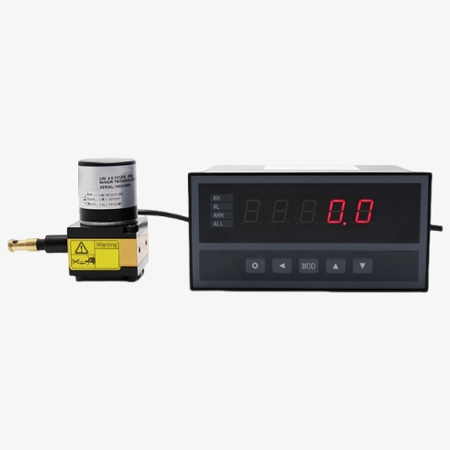

- This sensor uses a standardized interface, allowing for easy connection to PLCs, secondary instruments, microcontrollers, and other data acquisition systems, facilitating data acquisition and processing for users.
Applications
Displacement sensors are indispensable in four core areas: first, industrial automation, used for precise positioning and control of robots and production lines; second, precision detection and measurement, ensuring workpiece dimensions and processing quality; third, scientific research, supporting precision experiments in materials and micro-nano fields; and finally, equipment health and safety monitoring, monitoring the deformation and vibration of key structures in real time to prevent failures.
Precision Testing
Scientific Research
Equipment Safety
Industrial Automation
| Model | SISCO-DS-MNH80 |
| Signal Output Type | Digital output P G |
| Output Characteristics | TL liquid |
| Parallel output, serial output, SSI interface, bus, PROFIBUS, CAN0pen | |
| RS485 | |
| Power Supply Voltage | DC 5V, DC 5~24V |
| Measuring Stroke | 0~1000mm |
| Maximum Reciprocating Speed | 1000 |
| Resolution | 0.008, 0.01, 0.02, 0.04, etc. |
| Wire Diameter | Φ0.6 |
| Linearity | 0.05%F·S |
| Wire Material | Stainless steel |
| Working Tensile Force | Approx.5N |
| Working Temperature | -25~+85℃ |
| Storage Temperature | -35~+95℃ |
| Weight | 500g |
| Service Life | >1×10⁶ cycles |
| Protection Rating | IP54 (standard) or customized |
Q1: What Is Linear Displacement?
A1: Linear displacement refers to the change in position of an object along a straight line, and its movement is usually quantified by measuring the distance from the starting point to the ending point. In industrial applications, accurate measurement of linear displacement is crucial for controlling mechanical motion, positioning, and monitoring.
Q2: How to Reduce Measurement Noise in Displacement Sensors?
A2: To reduce measurement noise, ensure that the steel cable is installed horizontally (deviation ≤ ±3°), keep the pulleys clean, and avoid dust accumulation; install protective devices in harsh environments, and connect the circuit correctly (e.g., connect the load before powering on) to reduce mechanical and electromagnetic interference.
Q3: How to Maintain a Displacement Sensor for Long-Term Accuracy?
A3: To maintain the long-term accuracy of general displacement sensors: ensure stress-free installation and avoid exceeding the range or harsh environments; regularly clean the probe and contact surface, check for wear on mechanical parts, and calibrate data on time.
Tips: How to Choose the Right Displacement Sensor for Your Application?
- First, clarify your needs: Is it for measuring straight lines or angles? What is the measurement range? What level of accuracy is required?
- Consider the operating environment: Is there oil/dust? Is the object moving at high speed? Is contact measurement required?
- Matching parameters: Is the output signal compatible with the device (e.g., if a PLC only recognizes 4-20mA, choose an analog signal model)? Is there enough installation space (e.g., for small devices, choose a Hall effect/capacitive sensor)?
