Featuring a 7-inch HD display and 1000X magnification, this digital microscope offers a screen resolution of 800×480 and video resolution of up to 1080p (1920×1080), with adjustable photo resolution of up to 10M pixels. Eight adjustable LED lights illuminate every microscopic detail, while the 10~40mm focus range ensures flexible observation for different samples. This USB digital microscope is perfect for watch and phone repair, textile inspection, and other precision measurement applications.

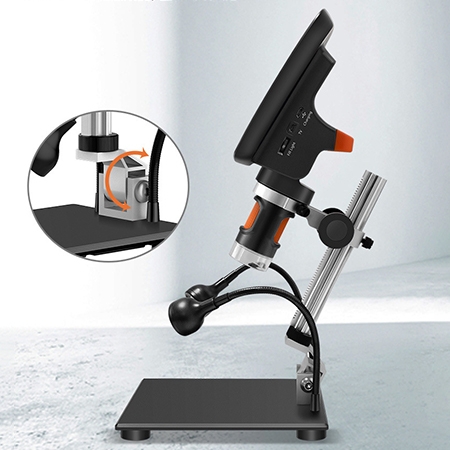

Adjustable Viewing Angle & Rechargeable Stand
- The digital microscope's viewing angle supports free adjustment, with the stand capable of tilting backward 180° to accommodate diverse observation needs.
- The microscope stand features a built-in rechargeable battery. Its Type-C charging port allows easy connection to computers, power banks, or wall outlets, ensuring uninterrupted operation during extended observation sessions.

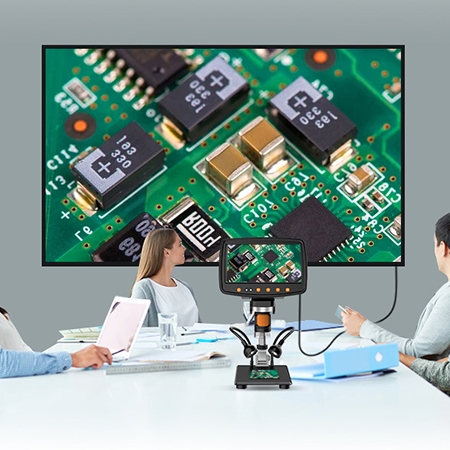

HDMI Output & Storage Compatibility
- This handheld digital microscope supports HDMI high-definition output. Connecting the microscope to a display via an HDMI cable provides a wider field of view.
- For data storage, the USB digital microscope requires a TF card with a Class 10 (C10) transfer speed. Using cards with a transfer speed lower than C10 may result in issues such as unsuccessful image or video storage during operation.

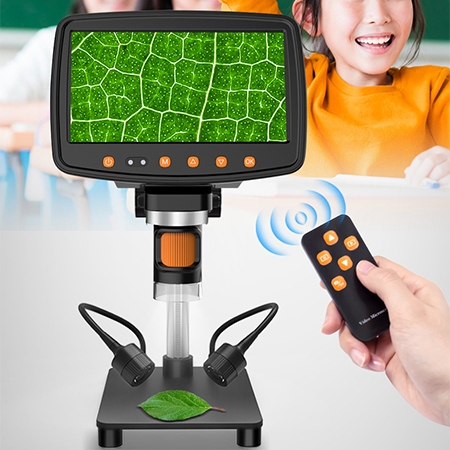

Wireless Remote Control & Safety Precautions
- The 1000X digital microscope comes with a wireless remote control. Both the main unit and remote feature a quick-access design, enabling one-touch digital magnification for enhanced convenience.
- During use, keep the microscope away from heat sources, open flames, and flammable/explosive gases or liquids. Prevent dust from entering the lens and internal components to ensure long-term stable operation.
Applications
In electronics manufacturing, SISCO's microscopes assist engineers in inspecting tiny circuit components for precise soldering and assembly. In watch repair, technicians use microscopes to examine intricate parts for accurate restoration and repair. During chemical experiments, researchers observe microscopic reactions and cellular structures. In gem appraisal, experts rely on microscopes to identify internal features and flaws, determining the gemstone’s quality and authenticity.
Watch Repair
Chemical Experiments
Gem Appraisal
Electronics Manufacturing
Â
| Model | SISCO-DM-MS1D-A |
| Magnification | 1000X |
| Display | 7-inch TN screen |
| Screen Resolution | 800×480 |
| Maximum Video Pixel | 1080FHD (1920×1080) |
| Optical Lens Size | 1/2.8'' |
| Lens Structure | 5G + IR |
| Aperture | F4.5 |
| Lens Viewing Angle | 16° |
| Image Format | JPG |
| Photo Resolution | 12M, 10M, 8M, 5M, 3M, 2MHD, 1.3M, VGA |
| Video Format | AVI |
| Video Resolution | 1080FHD (1920×1080), 1080P (1280×720) |
| PC Resolution & Frame Rate | 1280×720 / 26fps |
| Light Source | 8 adjustable LED lights |
| Focusing Mode | Manual focus |
| Focus Range | 10~40mm (supports distant view) |
| White Balance | Auto |
| Exposure | Auto |
| PC Compatibility | Windows 7 / 8.1 / 10, Mac OS x 12 or above |
| Supported Languages | English, Simplified/Traditional Chinese, Japanese, Korean, French, German, Italian, Spanish, Portuguese, Arabic, Russian (11 languages total) |
| Interface & Signal Transmission | Micro / USB 2.0 / Micro HDMI |
| Operating Temperature | -20°C ~ 55°C |
| Working Humidity | 30%~85% RH |
| Working Current | 600mA |
| Power Consumption | 3W |
| Battery Capacity | 1800mAh polymer lithium battery |
| Net Weight | 1.3kg |
Â
Details

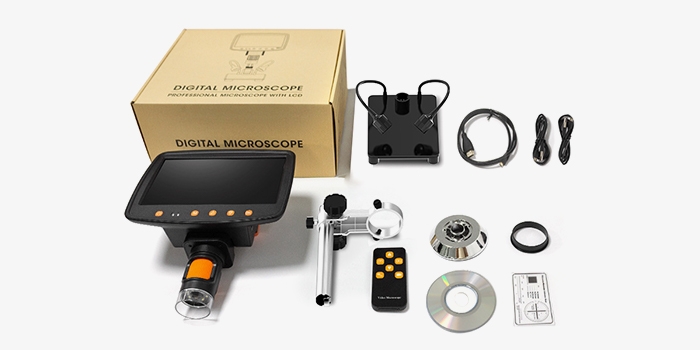

Packing List:
Q1: Which devices can this 7-inch 1000X digital microscope connect to for display?
A1: This digital microscope supports HDMI high-definition output, allowing you to connect it to any display device with an HDMI port — such as LCD TVs or computer monitors. This enables clearer viewing on larger screens, providing an enhanced visual experience and making it ideal for group observation or detailed analysis.
Q2: What functions can be controlled using the wireless remote?
A2: The wireless remote controller of this digital microscope offers multiple convenient functions. It allows one-touch digital zooming, so you can adjust magnification quickly without touching the microscope body. It also provides easy photo and video control, enabling you to capture important microscopic images and recordings instantly. Additionally, basic settings can be adjusted remotely, improving efficiency and ease of operation during continuous observation.
Q3: When should the brightness of the 8 adjustable LED lights be changed?
A3: The LED light brightness should be adjusted based on the sample and observation environment. For light-colored or transparent samples (e.g., thin plant slices), excessive brightness may cause overexposure and detail loss — in this case, reduce brightness. For dark or textured samples (e.g., metal parts), higher brightness ensures clear visibility of surface details. Proper light adjustment helps you achieve optimal image clarity in all conditions.
Tips: How to keep the microscope lens clear and sharp?
To maintain excellent image quality, clean the lens regularly. Before and after use, gently remove dust with a soft lens brush, then wipe using professional lens-cleaning paper or solution. Avoid applying excessive pressure to prevent scratches. When not in use, cover the lens with the protective cap to prevent dust accumulation. Regular maintenance ensures that your 7-inch 1000X digital microscope always delivers crisp, accurate microscopic images.
