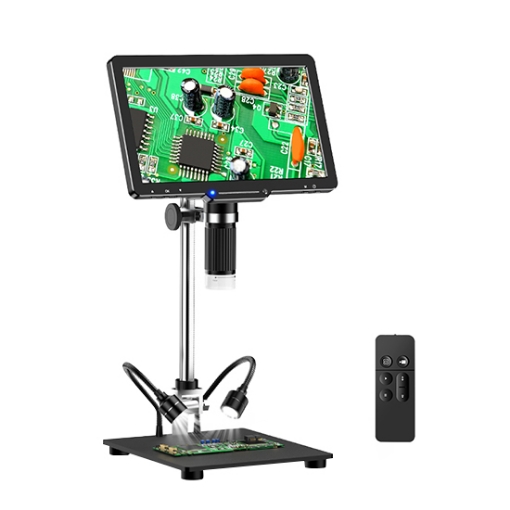

This industrial-grade digital microscope features a Sony HD image sensor and delivers immersive observation through an HDMI direct connection to large displays. The microscope's 90° adjustable stand design, paired with an infrared wireless remote control, enables flexible and unrestricted operation. Supporting Windows 7, 8, and 10, as well as Mac OS X 12 or later, and featuring 11 interface languages, this 1600X digital microscope meets the needs of global users across research, manufacturing, and quality control industries.

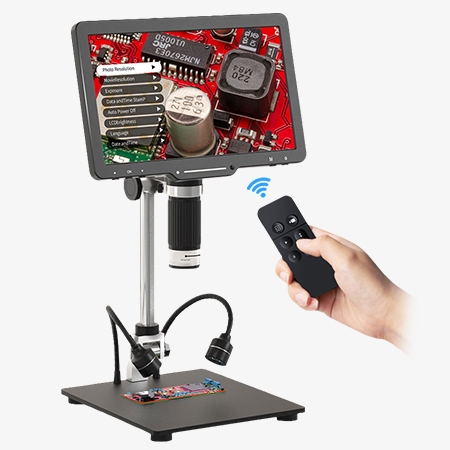

Wireless Infrared Remote Control for Flexible Operation
- The 1600x digital microscope's infrared remote allows smooth, multi-angle wireless control within a 1–5 meter range, eliminating cable clutter and ensuring a stable, shake-free observation experience.
- The enhanced 10.1-inch large screen and widened base design of the microscope not only improve stability but also enhance clarity and detail rendering.
- With a 178° wide viewing angle, the IPS display guarantees bright, vivid, and true-to-life colors from any perspective, making this handheld digital microscope ideal for team observation and demonstration.

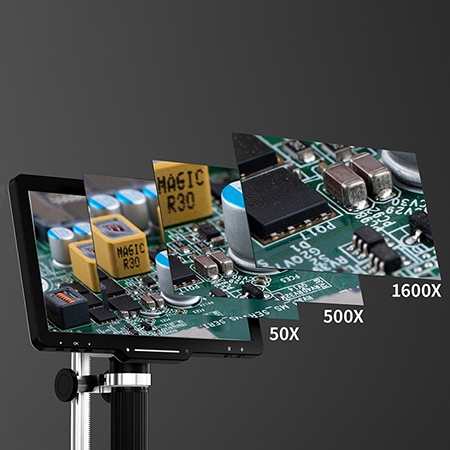

50X–1600X Zoom & Polarized Lens for Clearer Imaging
- Offering 50X–1600X digital magnification, this high-resolution microscope delivers exceptional precision for micro-level analysis.
- The built-in polarizing filter lens of the digi microscope eliminates glare from metal, glass, or reflective surfaces, ensuring crisp, glare-free imaging.
- Our digital microscope also supports HDMI output, allowing real-time display on larger screens, which is perfect for group observation, training, and documentation.
- With one-click photo and video recording, users can easily capture and share high-definition microscopic images.

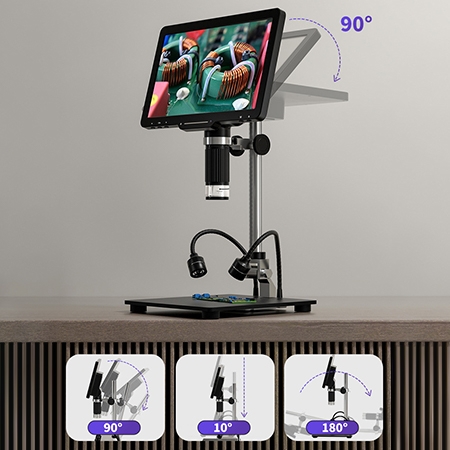

Adjustable Angles & 24MP Sensor for Superior Image Quality
- Both the microscope body and stand support flexible angle adjustments (such as 10°, 90°, 180°), making it adaptable for flat-surface inspection and 3D observation.
- The integrated Sony 24MP ultra-high-definition sensor of this high-resolution digital microscope delivers stunning image clarity and color accuracy, meeting the standards of industrial, educational, and scientific applications.
- Additionally, the sliding light bar control allows quick adjustment of the 8 LED brightness levels, enabling precise lighting from dark-field to bright-field conditions, optimizing your microscopic imaging experience.
Applications
In electronics manufacturing, SISCO's microscopes assist engineers in inspecting tiny circuit components for precise soldering and assembly. In watch repair, technicians use microscopes to examine intricate parts for accurate restoration and repair. During chemical experiments, researchers observe microscopic reactions and cellular structures. In gem appraisal, experts rely on microscopes to identify internal features and flaws, determining the gemstone’s quality and authenticity.
Watch Repair
Chemical Experiments
Gem Appraisal
Electronics Manufacturing
| Model | SISCO-DM-LP101-A |
| Magnification | 1600X |
| Display | 10.1-inch IPS HD screen |
| Screen Resolution | 1024×600 |
| Maximum Video Pixel | 1080P |
| Optical Lens Size | 1/2.8'' |
| Lens Structure | 5G + IR |
| Aperture | F4.5 |
| Lens Viewing Angle | 16° |
| Image Format | JPG |
| Photo Resolution | 24M, 20M, 16M, 12M, 10M, 8M, 5M, 3M, 2M |
| Video Format | MP4 |
| Video Resolution | 1080P, 720P |
| PC Resolution & Frame Rate | 1280 × 1080 / 25 fps |
| Light Source | 8 adjustable LED lights |
| Focusing Mode | Manual |
| Focus Range | 10~40mm (supports distant view) |
| White Balance | Auto |
| Exposure | Auto |
| PC Compatibility | Windows 7 / 8.1 / 10, Mac OS x 12 or above |
| Supported Languages | English, Simplified/Traditional Chinese, Japanese, Korean, French, German, Italian, Spanish, Portuguese, Russian (10 languages total) |
| Interface & Signal Transmission | Micro / USB 2.0 / Mini HDMI |
| Operating Temperature | -10°C ~ 55°C |
| Working Humidity | 30%~85% RH |
| Working Current | 700mA |
| Power Consumption | 3.5W |
| Battery Capacity | 3000mAh polymer lithium battery |
| Net Weight | 2 kg |
Details
Q1: What applications is this digital microscope suitable for? Can it be used in professional fields?
A1: This digital microscope supports 50X–1600X digital zoom, covering a wide range of applications from daily observation (e.g., plant cells, insect structures) to professional inspection (e.g., electronic component repair, jewelry identification, and material analysis). Equipped with a 10.1-inch IPS HD display and a polarizing lens, the microscope effectively eliminates glare, making it ideal for industrial inspection, laboratory research, educational demonstrations, and other fields that demand high image quality.
Q2: How does the infrared remote control work? What is its effective range?
A2: The infrared remote control of our digital microscope allows multi-angle operation within 1–5 meters, enabling users to adjust zoom, capture images, or control lighting without directly pointing at the device. Its wireless design prevents cable interference, making it especially convenient for hands-free operation or group demonstrations, such as in teaching environments.
Q3: Can the microscope connect to a large display? How can observation images be shared?
A3: Yes, this digital microscope supports HDMI HD output, allowing direct connection to TVs, projectors, or external monitors for large-screen viewing. It also features one-touch photo and video recording, producing clear images for documenting experiments or inspection details. Captured content can be transferred via USB or Wi-Fi (device-dependent) to computers or smartphones for easy sharing.
Tips: How to quickly adjust the light brightness to suit different observation needs?
Efficient brightness adjustment: The microscope features a touch-sensitive dimming bar, allowing seamless brightness control of the 8 adjustable LED lights with a simple finger swipe—no need to interrupt observation.
Recommended lighting settings:
- Transparent or reflective materials (e.g., glass, metal): Lower brightness and activate the polarizing filter to reduce glare.
- Dark-field observations (e.g., biological slides): Increase brightness to 70%–100% for clearer details.
- Shared viewing scenarios: Maintain medium brightness (50%–60%) to avoid screen overexposure and ensure a comfortable viewing experience.
