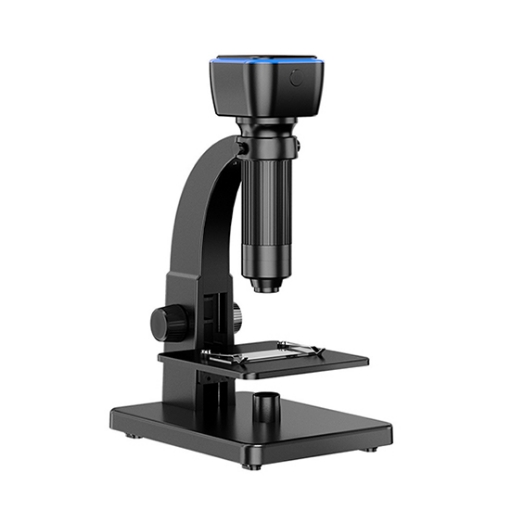

SISCO’s portable digital microscope introduces an innovative dual lens system tailored to different observation scenarios. Equipped with 10 adjustable LED lights plus 1 ultra-bright LED, this compact WiFi digital microscope ensures sharp focus and vivid imaging even in low-light conditions. Lightweight and portable, it is a professional yet convenient tool for education, research, industrial testing, and daily exploration.

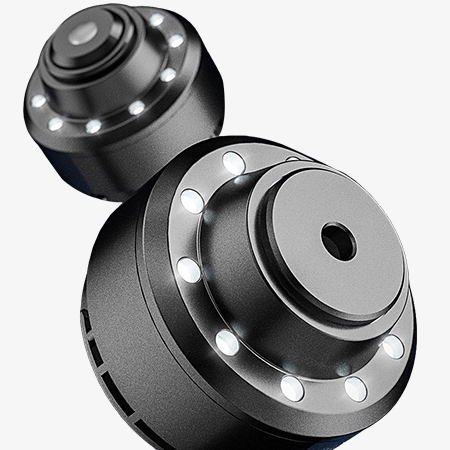

Dual Lens for Versatile Applications
- 500X Detection Lens: The digital microscope's 500X lens is specifically designed for industrial inspection tasks, including circuit board repair, precision machinery testing, welding analysis, textile quality control, and IC surface inspection. Best paired with the 2000X lens for comprehensive observation.
- 2000X Biological Lens: Specially optimized for biology-related research, including microbiology, specimen slicing, and plant disease studies, delivering up to 2000X magnification with fine image detail.

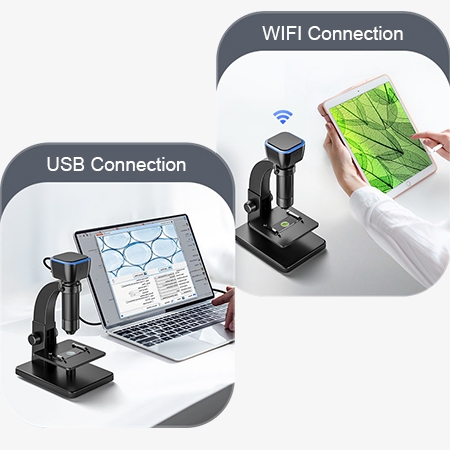

Flexible Connectivity & Smooth Focusing
- This portable USB & WiFi digital microscope supports both wireless and wired connections, ensuring seamless compatibility with Android 8.0+, iOS 8.0+, Windows XP/Vista/7/8/10, and Mac OS 10.8+. View real-time, high-quality images across multiple devices with ease.
- The WiFi microscope features a manual focus knob with a wide adjustment range (2mm~55mm), allowing precise control over observation. A stable frame rate of 20~30 fps ensures smooth and lag-free video streaming during detailed inspections.

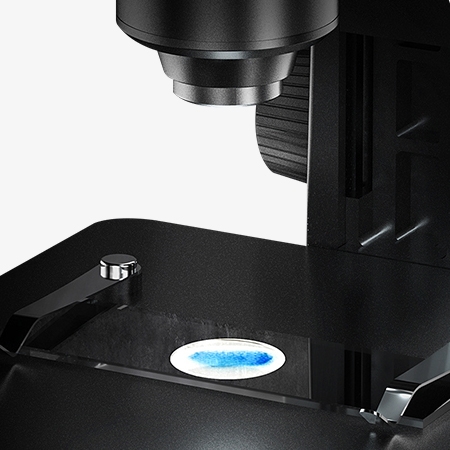

Enhanced Lighting & Long Battery Life
- The USB microscope's built-in dual LED light sources (top light + stand light) provide even, soft illumination for clear observations, even in dim environments. For transparent objects or slides, the stand light delivers superior focus and clarity.
- The 1800mAh rechargeable battery supports over 5 hours of use on a single charge. The digital microscope’s metallic focus tube, featuring a glossy finish, ensures smooth and accurate zooming, while anti-slip pads on the base keep the device stable during operation.
Applications
In electronics manufacturing, SISCO's microscopes assist engineers in inspecting tiny circuit components for precise soldering and assembly. In watch repair, technicians use microscopes to examine intricate parts for accurate restoration and repair. During chemical experiments, researchers observe microscopic reactions and cellular structures. In gem appraisal, experts rely on microscopes to identify internal features and flaws, determining the gemstone’s quality and authenticity.
Watch Repair
Chemical Experiments
Gem Appraisal
Electronics Manufacturing
Â
| Model | SISCO-DM-315W |
| Magnification | 0X-2000X |
| Image Sensor | 5MP HD camera |
| WiFi Transmission Distance | Up to 5m (open environment) |
| Working Distance | 0–70mm |
| Focus Mode | Manual focus |
| Focus Adjustment Range | 2mm–55mm |
| Frame Rate | 20–30 fps |
| USB Port | USB 2.0 |
| Data Format | JPG / MP4 |
| Illumination | 10 high-brightness LED lights + 1 ultra-bright LED (adjustable brightness) |
| Compatible Systems | Android 8.0 and above, iOS 8.0 and above, Windows XP/Vista/7/8/10, Mac OS 10.8 and above |
| Power Supply | 18650 Lithium Battery 3.7V/1800mAh |
| Working Time | Up to 5 hours |
| Charging Time | About 3 hours |
| Net Weight | Approx. 1.2kg |
Â

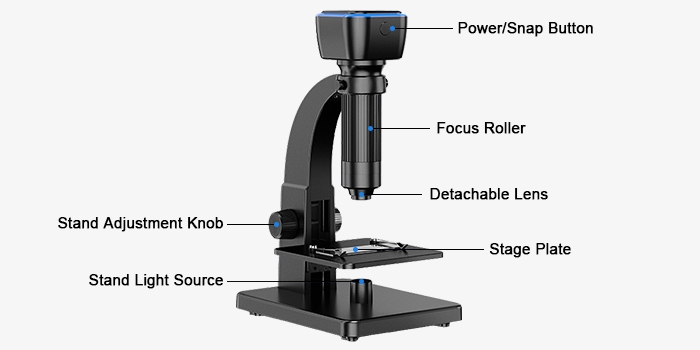

Details
Q1: Does this USB & WiFi digital microscope require additional drivers for different operating systems?
A1: No extra drivers are needed. The digital microscope is designed for plug-and-play compatibility with multiple operating systems, including Android 8.0+, iOS 8.0+, Windows XP/Vista/7/8/10, and Mac OS 10.8+. Once connected, most systems automatically recognize and configure the device, allowing you to start observing right away without driver concerns.
Q2: Is switching between the dual lenses easy? Will it interrupt observation?
A2: Switching lenses is quick and smooth, ensuring continuous observation without interruptions. The 500X inspection lens of the microscope is perfect for industrial applications like PCB inspection or textile quality control, while the 2000X lens is tailored for biological studies such as slice analysis and microbiology. Users can switch between the two with ease, ensuring seamless workflow and no missed details.
Q3: Can the wifi microscope provide clear illumination in low-light environments?
A3: Yes. Equipped with both top LED lighting and stand-mounted LED illumination, this USB microscope ensures sufficient and even lighting in dim conditions. Brightness is adjustable, making it easy to adapt for different samples—whether opaque objects, transparent materials, or prepared slides—so you always achieve clear focus and accurate imaging.
Tips: What should I do if the microscope image appears blurry?
If you encounter blurry images during observation, don’t assume it’s a lens defect. Follow these steps:
- Check focus accuracy: Adjust the manual focus knob (2mm–55mm range) slowly until the image sharpens.
- Adjust the lighting: Improper brightness may cause blur; try tuning the LED illumination from either the top or stand-mounted source.
- Clean the lens: Dust or smudges on the lens can degrade image clarity—use proper lens-cleaning tools for maintenance.
By following these checks, you can usually resolve image clarity issues and ensure sharp, high-quality microscopic results.
