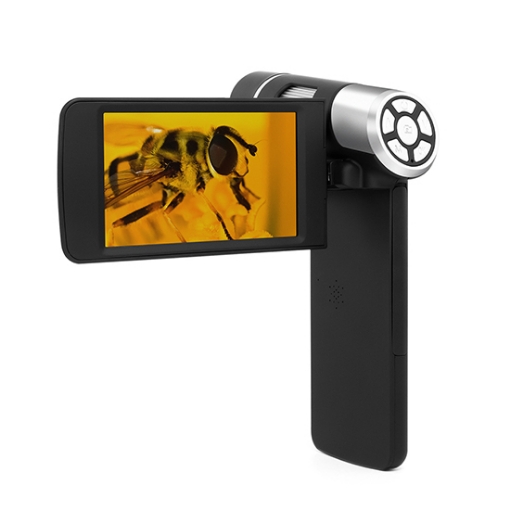

This handheld digital microscope features a built-in 1800mAh rechargeable lithium battery, offering up to 2.5 hours of continuous use on a single charge. The 4-inch HD display supports about 360° rotation, allowing you to adjust the viewing angle for maximum comfort. Widely applicable across different fields, it’s perfect for fine part inspection during watch repair, textile analysis, or exploring the microscopic world of botany and entomology.
Lightweight and Compatible Design

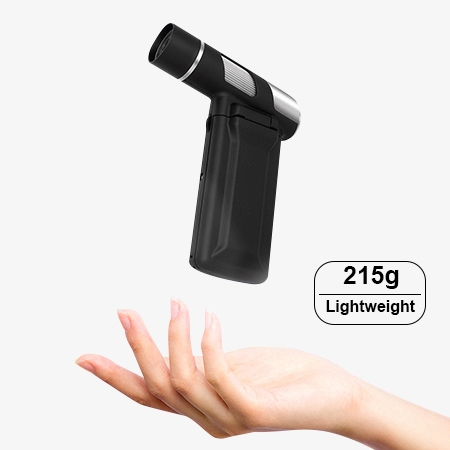

- This portable microscope is lightweight at only 215g, allowing easy one-handed operation and effortless carrying for outdoor fieldwork or on-site inspection.
- The handheld digital microscope also provides excellent system compatibility, supporting Windows 7/8/10 (via AMCAP software), enabling seamless image transmission and processing on common computer systems.
Adjustable LED Lights & Long Battery Life

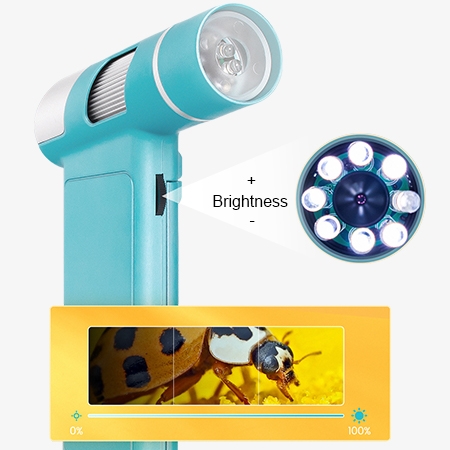

- Equipped with 8 LED lights with adjustable brightness, this digital USB microscope adapts to various environments. Even in low-light conditions, brightness can be flexibly adjusted to ensure clear viewing.
- With a built-in 1800mAh battery, the microscope provides up to 2.5 hours of continuous use per charge, eliminating worries about power interruptions during long observation sessions.
360° Rotatable Screen & Flexible Accessories
- One of the highlights of this handheld microscope is its 360° rotatable 4-inch LCD screen, which can be adjusted to any angle for convenient observation, whether standing, sitting, or lying down.

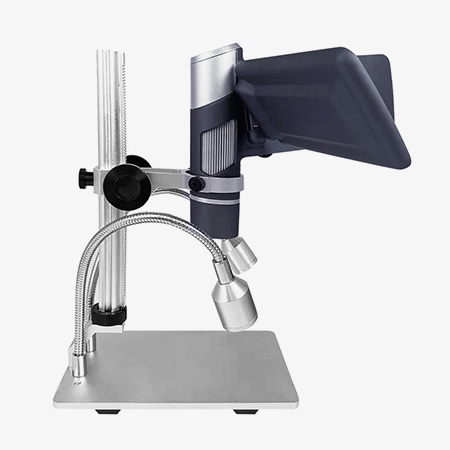

- The handheld microscope also supports practical accessories: an optional 32GB SD card for extended storage, and metal stands (no-lamp or dual-lamp) to enhance stability and observation convenience, meeting diverse user needs.
Applications
In electronics manufacturing, SISCO's microscopes assist engineers in inspecting tiny circuit components for precise soldering and assembly. In watch repair, technicians use microscopes to examine intricate parts for accurate restoration and repair. During chemical experiments, researchers observe microscopic reactions and cellular structures. In gem appraisal, experts rely on microscopes to identify internal features and flaws, determining the gemstone’s quality and authenticity.
Watch Repair
Chemical Experiments
Gem Appraisal
Electronics Manufacturing
Â
| Model | SISCO-DM-AD203 |
| Magnification | 28X (built-in 4-inch screen) |
| 84X (3X digital zoom) | |
| 200X (30-inch computer full screen) | |
| Image Sensor | 2MP HD sensor |
| Photo Format | JPG |
| Photo Resolution | Up to 12M (4032 × 3024) |
| Video Format | AVI |
| Video Resolution | 1080 FHD Full HD 1920 × 1080, 30FPS |
| 1080P HD 1440 × 1030, 30FPS | |
| 720P HD 1280 × 720, 30FPS | |
| Focusing Range | Minimum 1cm |
| Frame Rate | 30 FPS |
| Storage | Micro SD card, up to 32GB |
| PC Support | Windows 7/8/10 (via Amcap software) |
| Power Supply | USB 5V DC |
| Illumination | 8 built-in adjustable LED lights |
| Display Resolution | 800 × 480 |
| Display Size | 4 inches |
| Language Support | 12 languages (English, Simplified Chinese, Traditional Chinese, Japanese, French, German, Korean, Vietnamese, Portuguese, Russian, Spanish, Italian) |
| Standard Package Includes | Handheld microscope ×1, Power cable ×1, Portable wrist strap ×1, Carrying case ×1, User manual ×1 |
| Product Size | 18×13×4(cm) |
| Net Weight | 215g |
Â
Details
Q1: What can I use this portable digital microscope for?
A1: This handheld digital microscope is highly versatile. It can be used for watch repair, textile inspection, coin and stamp collecting, circuit board analysis, plant and insect observation, and even educational purposes. Thanks to its 2MP sensor, 200X magnification, and LED lighting system, it delivers clear, detailed images suitable for both professional and hobby use.
Q2: How long does the rechargeable microscope battery last?
A2: The built-in 1800mAh lithium battery provides up to 2.5 hours of continuous operation on a single charge. This long-lasting power supply makes the rechargeable portable microscope ideal for field research, classroom teaching, or extended inspection tasks that require minimal recharging.
Q3: Can I connect this USB microscope to my computer?
A3: Yes. This USB microscope is compatible with Windows 7/8/10 via AMCAP software. You can easily transfer and process captured images on your PC. When connected to a larger 30-inch computer display, it can achieve up to 200X magnification, allowing detailed observation of the microscopic world.
Tips: How to achieve the best image quality with your handheld microscope?
- For optimal results, always adjust the 8 LED lights according to the lighting conditions. In darker environments, increase brightness for sharper details, while in bright areas, lower the LED intensity to avoid glare.Â
- Also, keep the lens clean and use the 360° rotatable 4-inch screen to find the most comfortable viewing angle. If you need more stability, consider pairing the microscope with a metal stand for precise, hands-free observation.
