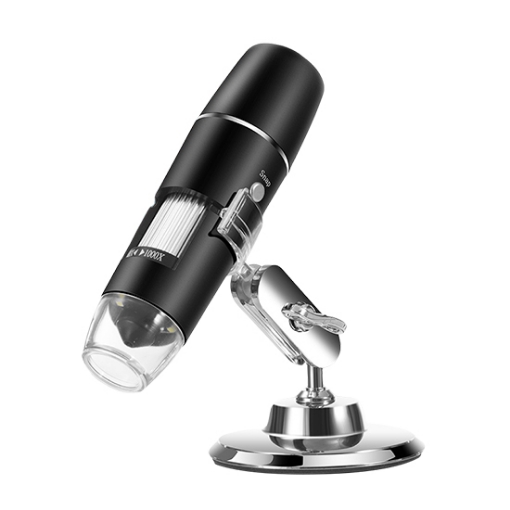

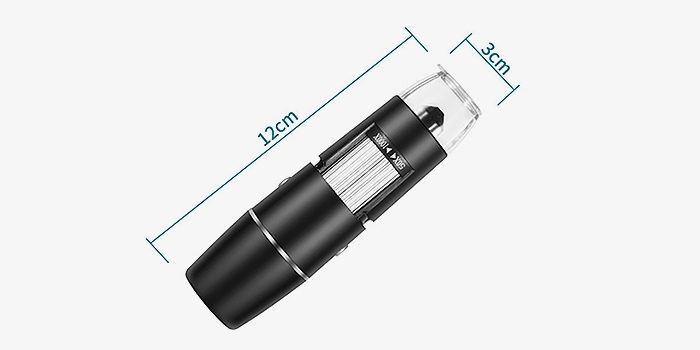

Designed with portability in mind, this wireless microscope is compact and lightweight, measuring just 12cm × 3cm, making it easy to carry anywhere. The wireless digital microscope can be paired with either a universal stand or a liftable stand for flexible use in different scenarios. The ergonomic focus wheel allows smooth single-hand adjustments, ensuring user-friendly operation for all levels of experience.

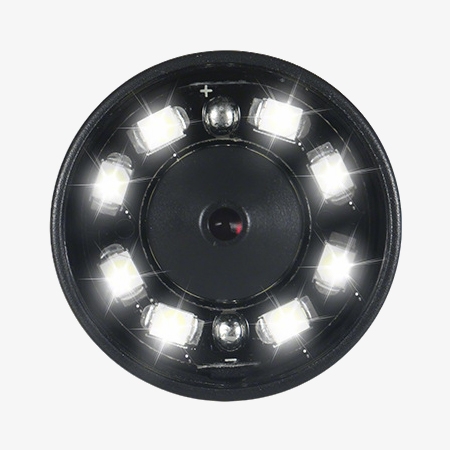

Smart LED Illumination for Clear Viewing
- This WiFi microscope is equipped with 8 adjustable LED lights that provide uniform, glare-free illumination for comfortable and precise observation.
- The digi microscope's 5G+IR lens structure with a 16° field of view (depending on the lens) delivers a wider perspective of the microscopic world, ensuring every detail is sharply presented.

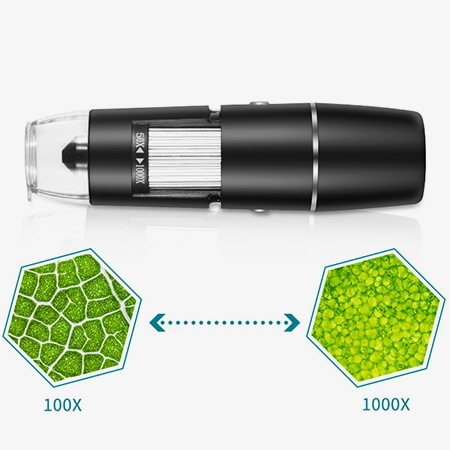

Wide Application with Seamless Connectivity
- This HD WiFi digital microscope adapts to countless use cases, from observing plants, insects, fabrics, and circuit boards to examining skin, hair follicles, and other fine structures.

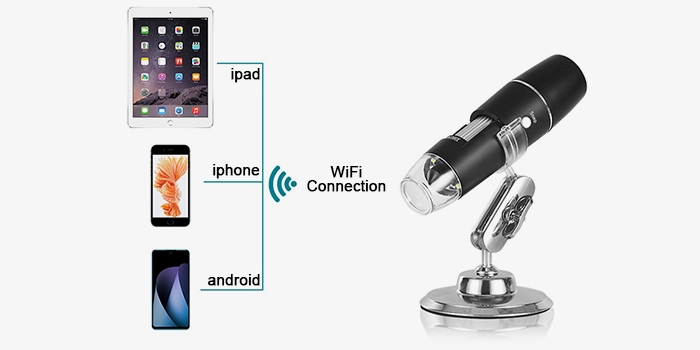

- The microscope works efficiently within a 0~10m open range (distance may vary in obstructed environments) and supports Android 5.0+ and iOS 8.0+ systems, enabling stable wireless connections anytime, anywhere.

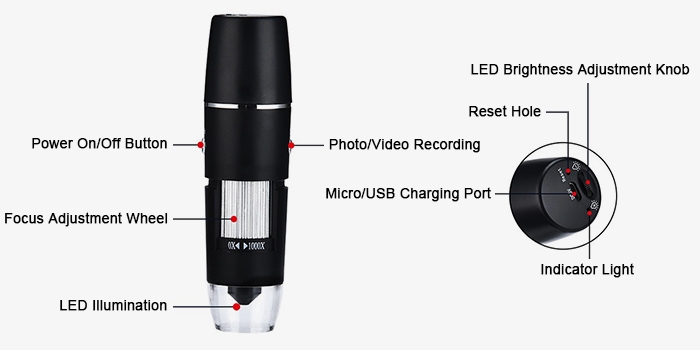

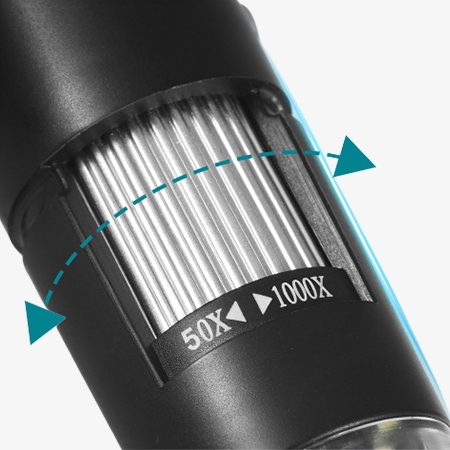

Effortless One-Hand Focusing
- Featuring a 50X–1000X focus wheel, this portable wifi digital microscope supports smooth, single-hand operation for quick and easy adjustments.
- With a manual focusing range of 0–40mm and a 1/6.5'' sensor, the wireless microscope captures images with high accuracy and fine detail, making it suitable for a wide variety of inspection and educational applications.
Applications
In electronics manufacturing, SISCO's microscopes assist engineers in inspecting tiny circuit components for precise soldering and assembly. In watch repair, technicians use microscopes to examine intricate parts for accurate restoration and repair. During chemical experiments, researchers observe microscopic reactions and cellular structures. In gem appraisal, experts rely on microscopes to identify internal features and flaws, determining the gemstone’s quality and authenticity.
Watch Repair
Chemical Experiments
Gem Appraisal
Electronics Manufacturing
Â
| Model | SISCO-DM-W05 |
| Color | Black |
| Eyepiece Magnification | 5X |
| Objective Lens Magnification | 10X |
| Total Magnification | Up to 1000X |
| Lens Structure | 5G + IR |
| Field of View | 16° (depending on lens configuration) |
| LED Lights | 8pcs SMD3528 high-brightness white LEDs (adjustable brightness) |
| Focusing Method | Manual adjustment |
| Focusing Range | 0~40 mm |
| Sensor Size | 1/6.5'' |
| Signal-to-Noise Ratio | 45dB |
| Sensitivity | 3V/lux-sec |
| Video Recording Format | MP4 |
| Video Resolution | 640*480 |
| Image Format | JPG |
| Operating Range | 0~10m (in open spaces; obstacles may reduce range) |
| Charging Requirement | DC-5V/1A |
| Operating Current | 270 mA |
| WiFi Compatibility | Android 5.0 or above, iOS 8.0 or above |
| WiFi Device Requirements | Supports 2.4 GHz (802.11 b/g/n) wireless data transmission |
| Operating Temperature | 0℃~40℃ |
| Storage Temperature | -10℃~60℃ |
| Operating Humidity | 30%~60% RH |
| Storage Humidity | 10%~80% RH |
| Net Weight | 300g |
Â
Details
Q1: Which devices are compatible with this WiFi digital microscope?
A1: This WiFi digital microscope offers wide compatibility. It works seamlessly with iPad, iPhone, and all devices running Android 5.0 or above and iOS 8.0 or above. Simply download and install the dedicated app, and you can enjoy real-time wireless viewing of high-definition microscopic images. Please refer to the user manual for installation guidance.
Q2: Can the LED brightness be adjusted? How do I adjust it?
A2: Yes. This portable microscope is equipped with 8 adjustable LED lights. You can easily control brightness using the built-in adjustment button, ensuring optimal lighting for every observation. Whether you need soft light for biological specimens or strong light for PCB boards and printed materials, it adapts perfectly.
Q3: What is the magnification range? Can it observe very small objects?
A3: The digital microscope provides a magnification range from 0X to 1000X, making it highly versatile for studying tiny objects. From plant cells and insect wings to delicate electronic components, it delivers sharp and detailed images at every magnification level.
Tip: How to get the clearest image with your WiFi digital microscope?
- Always keep the microscope lens clean using lens paper or a soft cloth.
- Adjust the LED brightness according to the sample to avoid overexposure or dim images.
- Use the manual focus wheel carefully to fine-tune sharpness until the image is crystal clear.
Following these steps will help you capture high-quality, detailed microscopic images with ease.
