This portable 3-in-1 digital microscope integrates USB, Micro, and Type-C interfaces, giving you flexible connection options for computers and mobile devices. When connected to a PC, the USB microscope delivers sharp, high-definition images that bring every microscopic detail into focus. Equipped with 8 adjustable LED lights, this USB digital microscope ensures clear observation even in low-light or nighttime conditions.
Full-Angle Observation with Adjustable LED Brightness

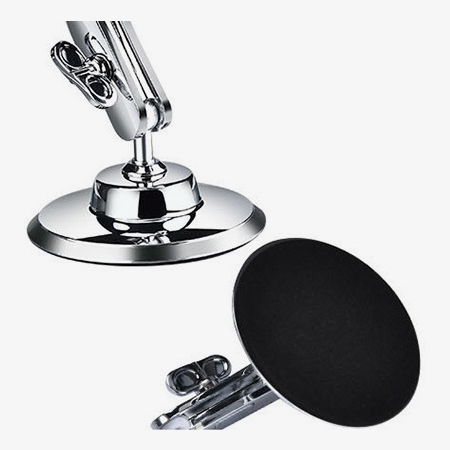

- The USB microscope can be mounted on a universal rotating base, supports 360° horizontal and vertical viewing angles, so you can capture clear images from any position.
- The anti-slip design of the microscope's stand ensures excellent stability during use.
- With LED brightness controlled via an inline dimmer switch, you can easily adjust or switch off the lighting to achieve the perfect illumination for different environments when using the USB digital microscope.

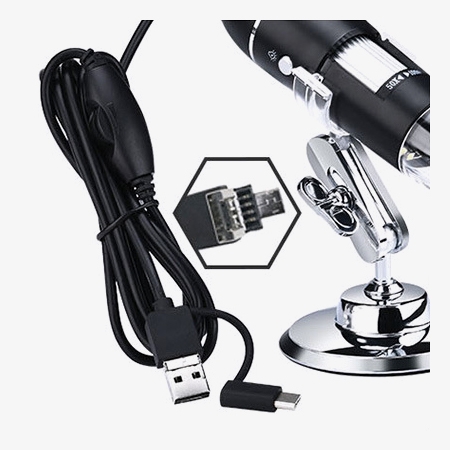

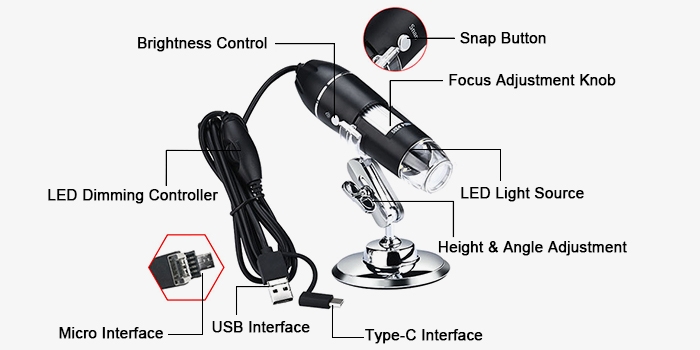

3-in-1 Interface with Easy Focusing

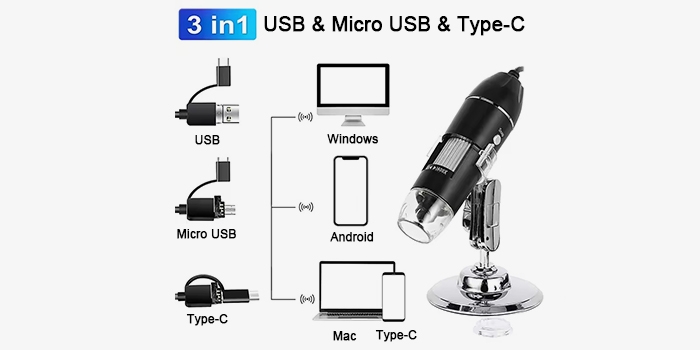

- Designed with USB, Micro, and Type-C 3-in-1 ports, this digital microscope offers wide compatibility and convenient plug-and-play operation.
- When connected to a computer, the handheld digital microscope delivers high-quality, sharp images for detailed inspection and analysis.
- The precision focus wheel allows smooth adjustment between 50X and 1000X magnification, enabling single-hand operation for a more efficient and user-friendly experience.

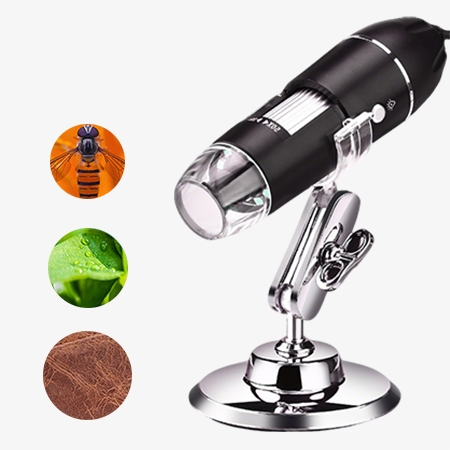

Crystal-Clear Imaging for Diverse Applications
- This USB digi microscope uses advanced imaging technology to deliver exceptionally sharp and detailed visuals. Whether observing microscopic plant and animal cell structures or analyzing the intricate patterns on leather surfaces, the microscope ensures a high-quality viewing experience.
- With its wide range of applications, this high-resolution digital microscope is perfect for studying biological specimens, helping researchers and students explore the micro world in depth.
- The portable microscope is also ideal for examining leather textures, material surfaces, and other fine details, making it a versatile tool for scientific research, education, and industrial inspection.
Applications
In electronics manufacturing, SISCO's microscopes assist engineers in inspecting tiny circuit components for precise soldering and assembly. In watch repair, technicians use microscopes to examine intricate parts for accurate restoration and repair. During chemical experiments, researchers observe microscopic reactions and cellular structures. In gem appraisal, experts rely on microscopes to identify internal features and flaws, determining the gemstone’s quality and authenticity.
Watch Repair
Chemical Experiments
Gem Appraisal
Electronics Manufacturing
Â
| Model | SISCO-DM-X4D |
| Eyepiece Magnification | 16X |
| Objective Magnification | 50X |
| Total Magnification | 1600X |
| Image Format | JPG |
| Video Format | MP4 |
| Image Resolution | 640*480，352*288，320*240 |
| Video Resolution | 640*480，352*288，320*240 |
| Focusing Mode | Manual |
| Focusing Range | 0~40mm |
| PC Resolution & Frame Rate | 640*480 / 26FPS |
| Aperture | F4.5 |
| Signal-to-Noise Ratio | 42dB |
| Sensitivity | 2.5V/lux.s |

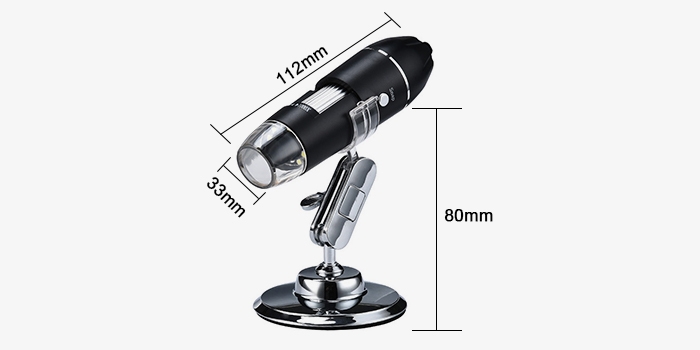

| Dimensions | 112mm (L) × 33mm (OD) |
| System Support | Windows 10 / 8 / 7 / XP, Mac OS |
| Image Sensor | 1/6.5'' Color CMOS Image Sensor |
| Included CD | Driver, measurement software, user manual |
| White Balance | Auto |
| Driver Type | UVC |
| Light Source | White LED |
| Operating Current | Max. 120mA |
| Operating Temperature | 20℃ ~ 75℃ |
| Operating Humidity | 30% ~ 90% RH |
| Interface & Signal Transmission | Micro / Type-C / USB 2.0 |
| Power Input | USB-5V |
| Lens Structure | 5G + IR |
| Lens Angle of View | 16° |
| Net Weight | 180g / 300g (with lifting stand) |
Â
Details
Q1: What devices are compatible with the 3-in-1 USB digital microscope?
A1: This digital microscope supports USB, Micro, and Type-C connections, making it compatible with Mac computers as well as most Android smartphones. With its plug-and-play design, you can easily capture images or record videos without additional drivers.
Q2: How much magnification does this portable microscope provide?
A2: The USB microscope offers 16X eyepiece magnification, 50X objective magnification, and a maximum total magnification of up to 1600X. The precise focus wheel enables smooth adjustment of the range between 50X and 1000X, making it ideal for electronics inspection, textile analysis, and educational purposes.
Q3: Can I use the USB microscope in low-light conditions?
A3: Yes, the 3-in-1 handheld digital microscope features 8 built-in LED lights that offer adjustable brightness. Whether you’re working in a dim room or at night, you can control the lighting with the inline dimmer switch to achieve clear and bright images.
Tips: How can you achieve the best viewing experience with the USB microscope?
For optimal image clarity, place the specimen on a stable surface and use the universal rotating stand to adjust the observation angle. Fine-tune the LED brightness to match your environment, and always adjust focus gradually when working at higher magnifications. This ensures sharper images and reduces eye strain during extended use.
