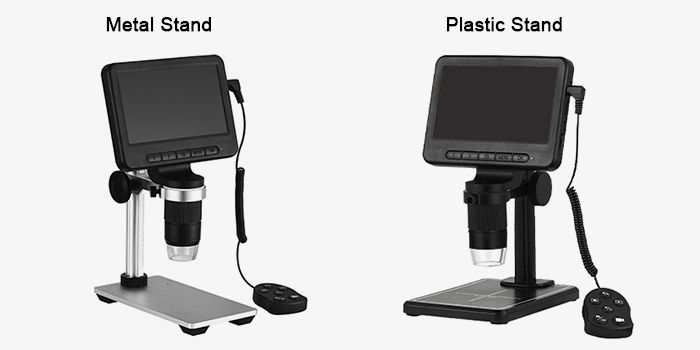

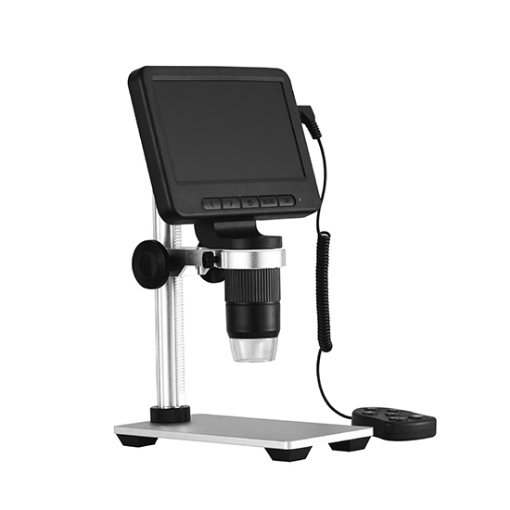

Crafted with precision, the SISCO USB & WiFi digital microscope with screen comes with an external remote controller for effortless operation. Users can choose between metal or plastic stands to suit different environments. The digital microscope's 2MP CMOS high-definition sensor ensures sharp, detailed images even in low-light conditions. Ideal for circuit board repair, inspecting antiques and jewelry, fine engraving, and surface quality testing, this microscope offers professional-grade performance in a compact form.
Adjustable Viewing Angle & Smooth Performance

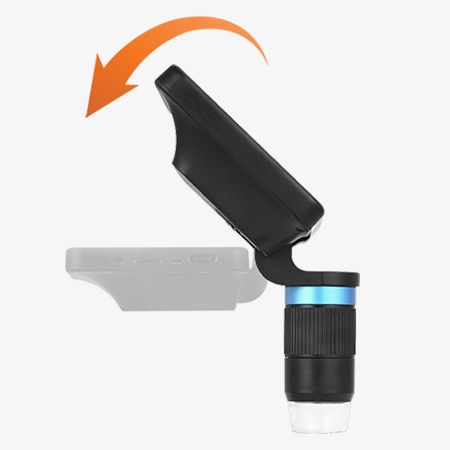

- This portable digital microscope features a 90° adjustable flip screen that adapts to different working angles for maximum viewing comfort.
- The microscope provides PC image transmission up to 1280Ă—720/36fps, ensuring fluid and lag-free visual performance.
- Compatible with Windows XP to Windows 10 and Mac OS X 10.5 or higher, this USB digital microscope enables broad device connectivity for both professional and educational use.

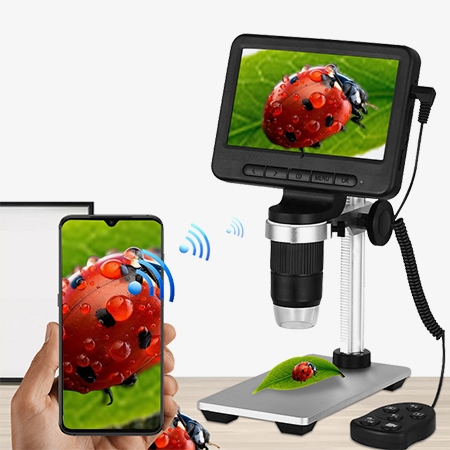

Dual Connectivity & Multilingual Interface
- The WiFi digital microscope enables real-time screen sharing with mobile phones, tablets, or computers, perfect for team discussions or classroom demonstrations.
- It also supports USB connection for more stable operation and precise measurement analysis.
- Offers 9 language options, including English, Simplified/Traditional Chinese, Japanese, Korean, French, German, Italian, Polish, and Russian—making the 1000X digital microscope user-friendly for global customers.

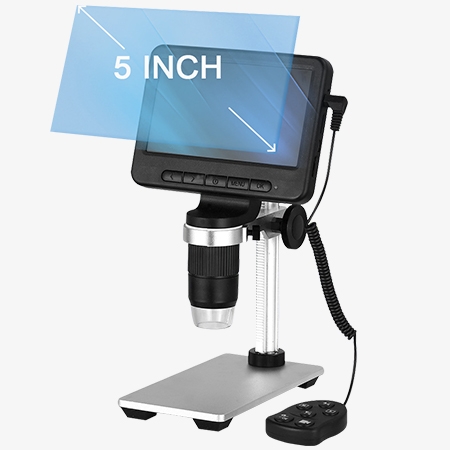

Clear Imaging with 5-Inch Display
- Our digital microscope is equipped with a 5-inch TN display (480Ă—272 resolution) that delivers crisp 1000X digital magnification with exceptional clarity.
- The digi microscope supports photo resolutions of 3M (2048*1536), 2M (1920*1080), and 1M (1280*720), and video recording at VGA, 720P, and 1080FHD formats for flexible documentation.
- The 2MP CMOS sensor of the digital microscope with screen captures vivid, high-quality images even in dimly lit environments, ensuring accurate observation every time.
Applications
In electronics manufacturing, SISCO's microscopes assist engineers in inspecting tiny circuit components for precise soldering and assembly. In watch repair, technicians use microscopes to examine intricate parts for accurate restoration and repair. During chemical experiments, researchers observe microscopic reactions and cellular structures. In gem appraisal, experts rely on microscopes to identify internal features and flaws, determining the gemstone’s quality and authenticity.
Watch Repair
Chemical Experiments
Gem Appraisal
Electronics Manufacturing
Â
| Model | SISCO-DM-MS2B |
| Magnification | 500X / 1000X |
| Display Screen | 5.0-inch TN standard-definition screen |
| Screen Resolution | 480*272 |
| Maximum Video Resolution | 1920*1080 |
| Optical Sensor Size | 1/4" |
| Lens Structure | 2G + IR |
| Aperture | F4.5 |
| Field of View | 16° |
| Image Format | JPG |
| Photo Resolution | 3M (2048*1536), 2M (1920*1080), 1M (1280*720) |
| Video Format | MOV |
| Video Resolution | VGA, 720P, 1080FHD |
| PC Resolution & Frame Rate | 1280*720 / 36 fps |
| Light Source | 8 adjustable LED lights |
| Focus Mode | Manual |
| Focusing Range | 10~40mm (supports long-distance viewing) |
| Digital Zoom | Supported |
| White Balance | Automatic |
| Exposure | Automatic |
| PC Operating Systems | Windows XP / 7 / 8.1 / 10, Mac OS X 10.5 or later |
| Supported Languages | English, Simplified Chinese, Traditional Chinese, Japanese, Korean, French, German, Italian, Polish, Russian (9 languages total) |
| Interface & Transmission | Micro USB / USB 2.0 |
| Operating Temperature | -20°C ~ 60°C |
| Operating Humidity | 30% ~ 85% RH |
| Working Current | 470mA |
| Power Consumption | 2.35W |
| Battery Capacity | 2000mAh, 18650 removable battery |
| Net Weight | 780g |
Â
Details
Q1: Does this 5-inch WiFi digital microscope require additional software or drivers?
A1: No, it doesn’t. The SISCO USB & WiFi digital microscope is a plug-and-play device that works directly with most operating systems. It’s compatible with Windows XP to Windows 10 and Mac OS X 10.5 or later, as well as Android and iOS devices through WiFi. Simply connect via USB or WiFi, and you can start viewing or recording images immediately—no complicated setup required.
Q2: Can I use this digital microscope for both industrial and educational applications?
A2: Absolutely. This USB digital microscope with a screen is designed for multi-purpose use. It’s ideal for PCB inspection, soldering work, precision component analysis, and jewelry or coin identification, as well as teaching, biology demonstrations, and material research. Its 5-inch display and 1000X magnification provide clear visualization for both professionals and students.
Q3: Can the screen of this 1000X microscope be adjusted to different angles for comfortable viewing?
A3: Yes, this microscope features a specially designed flip-up screen that supports up to a 90-degree angle adjustment. Users can easily tilt the screen to suit their viewing habits or work requirements. Whether you are standing, sitting, or observing from a reclined position, you can always find the most comfortable viewing angle—greatly enhancing convenience and user comfort.
Tips: How to maximize the WiFi function of this 1000X digital microscope for team collaboration?
In team collaboration or classroom demonstrations, fully utilizing the microscope’s WiFi screen-sharing function can greatly improve efficiency. It’s recommended to connect the microscope in advance to the presenter’s device (such as a tablet or laptop) and project the live view onto a large screen or projector. This allows all team members or students to see the magnified image in real time for easier discussion and analysis.
If multiple users need to take turns observing, set up a simple rotation schedule. After each user finishes, quickly disconnect the current device so the next participant can connect seamlessly—ensuring smooth transitions and maximizing productivity.
