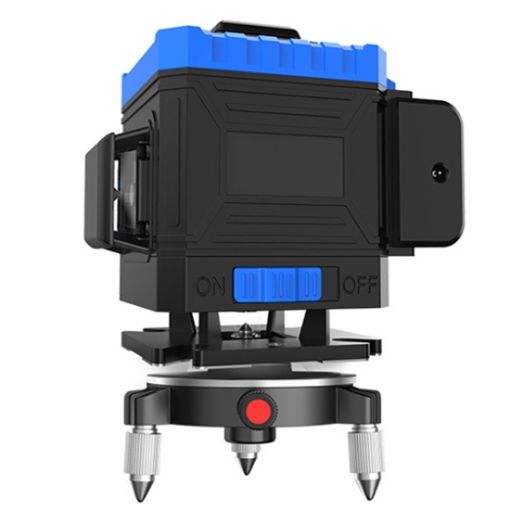

12 Line Green Laser Level

SISCO 12 lines green laser level tool for sale online with ±3° self-leveling range, 8 horizontal line and 4 vertical lines. Buy the laser level package which includes a magnetic pivoting base, remote control device, adjustable lifting platform, and magnetic bracket to help you measure the different positions.
SKU: SISCO-LL-12
$288.14
i h
Free shipping
Delivery date: 7-12 days
Overview


Cheap price self-leveling laser level with 12 green lines: 4 vertical line and 8 horizontal line, 360° rotation. The laser level measuring tool can be tilted self-leveling within ± 3 °, mounted on a tripod or attached to most metal surfaces using magnetic brackets, so it can be used in more scenes.

Features of 8-line green laser level

Waterproof design

  • Fully enclosed lens design, waterproof, drop-proof and dustproof.
  • Aluminum alloy thickened chassis, the body can be leveled by adjusting the tripod knob.

Features of green laser level

Thickened TPU body

  • Engineering ABS material base film, simulated moisture-proof.
  • Magnetic damping technology and non-leveling alarm system to improve leveling accuracy.
  • Precise positioning of vertical lines, reducing errors and improving efficiency.




Details

8 line laser level detail


Application

SISCO high-intensity laser level is a common measuring tool for measuring angles. The high-precision green light level can be widely used in metallurgical steel plate cutting, stone cutting, wood cutting, machine vision and other fields.

Application of laser level

Specs



Model SISCO-SL-12
No.of Laser Lines 12
Leveling Type 4 vertical line, 8 horizontal line, 6 crossing line
Laser Wavelength 635nm
Self-Leveling Range ±3°
Launch Angle ≥120°
Horizontal Accuracy 5m±1mm
Vertical Accuracy 5m±1mm
Plumb Dot Accuracy ±1mm at 1.5m
Line Width 2mm
Line Color Emerald green
Power Supply 2 x 5800mA rechargeable lithium battery (72 hours standby)
IP Rating IP 54
Operation Temperature -10℃~50℃
Battery Type Digital LCD rechargeable lithium battery (8 hours standby)
Function Key Fingerprint touch buttons
Wall Distance 7mm
Ground Distance 6mm
Laser Head Made in Germany
Working Time 12 hours
Outdoor Visible Distance About 15m
Remote Control Yes
Slash Mode Yes
Weight 3kg


Packing List

  • 1 x 8 Line Green Laser Level
  • 2 x 5800mA Lithium Battery
  • 1 x Power Adapter
  • 1 x Magnetic Bracket
  • 1 x Adjustable Lifting Platform
  • 1 x Magnetic Pivoting Base
  • 1 x Hand-shell Carrying Case
  • 1 x Remote Control
  • 1 x Conversion Screw
  • 1 x User Manual


8 Line Laser Level Diagram

12-line green laser level diagram

FAQs

Q1: Is a green laser level better than red?
A1: Yes. Green lasers are much more efficient and visible in areas of broad daylight and direct sunlight. They are also able to travel longer distances, which is why they are so popular on construction sites.

Q2: What are green laser levels used for?
A2: A green line laser level tool is a construction tool that uses a laser to detect the vertical position of the object. It's used for measuring distances and heights, as well as for aligning objects on different levels.

Q3: Why are laser levels green?
A3: Lasers emitted by the green diode provide a solid line that can be seen at a longer distance without requiring a detector. Clearer to see by the human eye than any other color and four times more visible than red. Green Laser Levels provide a great edge in interior jobs.

Tips: How to use a laser level to measure verticality?

When measuring the verticality of large parts, use a level to roughly adjust the reference surface to a horizontal position. Use a level to measure step by step on the reference surface and the measured surface, and use the graphic method to determine the reference orientation, and then calculate the perpendicularity error of the measured surface relative to the reference.

When measuring the verticality of small parts, first place the laser level on the reference surface, read the value of one end of the bubble and then use the side of the laser level to stick to the surface to be measured. The first reading value of the bubble deviation from the reference surface is The verticality error of the measured surface.

When using a laser level meter, ensure that the working surface of the laser level meter and the surface of the workpiece are clean to prevent dirt from affecting the accuracy of the measurement. When measuring the horizontal plane, in the same measuring position, the level should be adjusted to the opposite direction before the second measuring. When moving the level, the working surface of the level is not allowed to rub against the surface of the workpiece, and it should be lifted and placed.

Warranty

Thank you for buying industrial test and measurement equipment on sisco.com, all products sold by sisco and the partner cover a 12 months warranty, effective from the date of receiving the products.


What is covered?

sisco is responsible for providing free spare parts, and free technical support to assist the customer to repair the defective products until the problem is solved.


What is not covered?

  • Product purchased from anyone other than a sisco store or a sisco authorized reseller.
  • Expendable parts.
  • Routine cleaning or normal cosmetic and mechanical wear.
  • Damage from misuse, abuse or neglect.
  • Damage from use of parts other than sisco approved.
  • Damage from use outside the product’s usage or storage parameters.
  • Damage from use of parts not sold by sisco.
  • Damage from modification or incorporation into other products.
  • Damage from repair or replacement of warranted parts by a service provider other than a sisco authorized service provider.
  • Damage caused by the application environment not meeting the product usage requirements and the failure to perform preventive maintenance.
