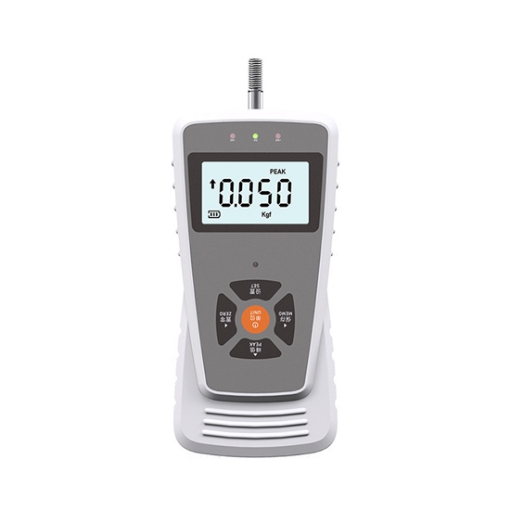

High-quality push-pull force gauge featuring a clear LCD display with easy-to-read digital readings, this force gauge offers high precision for various industrial, mechanical, and quality control applications. With its compact design, this force gauge is perfect for both fieldwork and lab environments, providing reliable results on the go.
Large screen display, clear and intuitive display

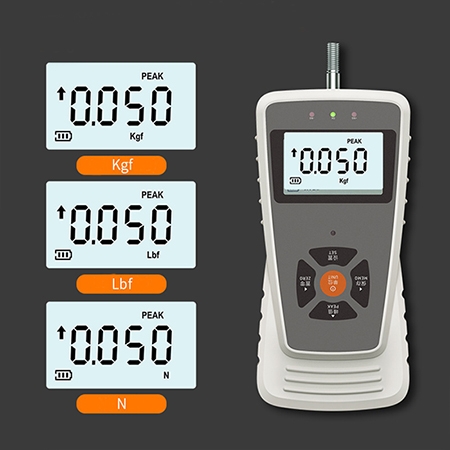

- Three Measurement Units: The digital force gauge is easily switch between Newtons (N), Pounds (lb), and Kilograms (kg) with the push of a button, offering flexibility for users in different regions or industries.
- User-Friendly Unit Conversion: The unit toggle function allows quick conversion of measurements without the need for manual calculations, ensuring accurate readings in the preferred system of measurement.
- Convenient One-Button Operation: With a simple, intuitive design, the unit switch can be done on-the-fly, streamlining the testing process and reducing time spent on recalculations.
- Accurate and Reliable Measurements: Whether in lbs, kg, or N, the force gauge delivers precise, consistent results for applications requiring high accuracy, from mechanical testing to product quality control.
Shockproof and drop-resistant, multi-layer protection

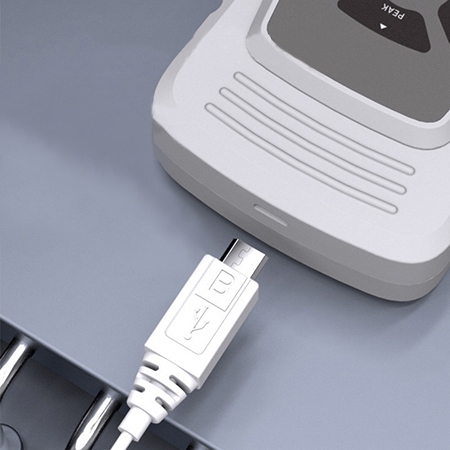

- USB Direct Charging: Conveniently charge the force gauge using a USB cable, eliminating the need for replaceable batteries. Simply plug it into any USB port, such as a computer, power bank, or adapter, for hassle-free recharging.
- Built-in Lithium Battery: SISCO digital push pull gauge equipped with a long-lasting lithium battery, providing up to several hours of continuous use on a single charge, ensuring reliable performance during extensive testing sessions.
- Quick Charging Time: The USB charging feature ensures a fast recharge, getting the device ready for use in a short amount of time, so you never have to worry about downtime.
- Portable and Convenient: No more dealing with disposable batteries or power adapters. The built-in lithium battery and USB charging feature make the force gauge ideal for on-the-go use and easy to store.

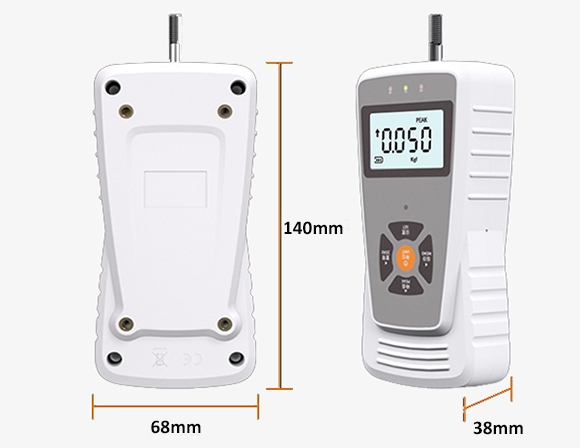

Dimension
Applications
SISCO pull push force gauge is suitable for push-pull load test in industries such as electronic appliances, light industry textiles, construction hardware, lighters and ignition devices, fire-fighting equipment, pens, locks, fishing gear, power machinery, scientific research institutions, etc.
Building Hardware
Light Industry and Textiles
Auto Parts
Electronic Appliances
| Model | SISCO-DFG-YW10N | SISCO-DFG-YW50N | SISCO-DFG-YW100N | SISCO-DFG-YW200N | SISCO-DFG-YW300KN | SISCO-DFG-YW500KN |
| Maximum Load Value | 10N | 50N | 100N | 200N | 300N | 500N |
| 1kg | 5kg | 10kg | 20kg | 30kg | 50kg | |
| 2.2 Lb | 11 Lb | 22 Lb | 45 Lb | 65 Lb | 110 Lb | |
| Load Division Value | 0.001N | 0.01N | 0.1N | 0.1N | 0.1N | 0.1N |
| 0.001kg | 0.001kg | 0.01kg | 0.01kg | 0.01kg | 0.01kg | |
| 0.001 Lb | 0.001 Lbf (＜10 Lbf) 0.01 Lbf (≥10 Lbf) |
0.1 Lb | 0.1 Lb | 0.1 Lb | 0.01 Lb | |
| Sensor Structure | Built-in type | |||||
| Accuracy | ±0.5% | |||||
| Power Supply | 3.7V built-in lithium battery, 1800mAh | |||||
| Unit | kgf, Lbf, N | |||||
| Operating Temperature | -10~60℃ | |||||
| Storage Temperature | -10~60℃ | |||||
| Relative Humidity | ≤85% RH | |||||
| Working Environment | No vibration source and no corrosive medium around | |||||
| Body Size | 140*68*34mm | |||||
| Weight | 560g | |||||
Q1: What is a digital force gauge?
A1: The digital force gauges are force-measuring devices with built-in load cells and are used to measure compression, tension, peel, or the coefficient of friction.
Q2: What does a force gauge measure?
A2: A Force Gauge is a measuring instrument used across all industries to measure the force during a push or pull test. Applications exist in research and development, laboratory, quality, production, and field environment. There are two kinds of force gauges today: mechanical and digital force gauges.
Q3: How do you read a force gauge?
A3: The switch is usually located on the face of the tool. Remember that tension (a pulling force) will be displayed as a positive number. Compression (a pushing force) will be displayed as a negative number.
Tips: Can I use this digital push-pull force gauge for outdoor testing?
Yes, the digital push-pull force gauge can be used for outdoor testing, as it is designed to handle a variety of environments. Its robust construction makes it suitable for use in workshops, labs, or outdoor fieldwork where precise force measurements are needed. However, when using the device outdoors, it’s important to keep in mind that exposure to extreme weather conditions, such as heavy rain, snow, or very high humidity, could potentially damage the electronic components or affect the accuracy of readings.
For normal outdoor conditions, such as moderate temperatures and dry weather, the gauge will work effectively, providing accurate and reliable measurements. If you're planning to use the gauge in more demanding environments (e.g., on construction sites or in outdoor testing stations), we recommend protecting the device with a weather-resistant case or cover to shield it from moisture, dust, and debris.
