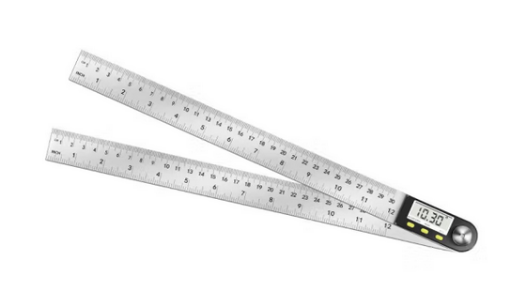

    2 in 1 Digital Protractor, 200 mm

    Digital protractor angle finder length 200 mm/7 inches, made of high-quality stainless steel, LCD high-definition LCD large-screen digital display makes the reading clear. The digital protractor has a locking function to lock any angle, which is ideal for daily use.
    SKU: SISCO-DP-200
    $135.96
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days
    Overview


    2-in-1 electronic digital protractor for sale, with easy-to-read large LCD display, accurately measures lengths 0~200 mm/0~7 inches. The digital angle finder can be locked at any angle for measuring internal and external lengths and angles.



    Digital protractor with locking function

    Digital display, accurate measurement

    • Digital protractor with digital display, easy to read.
    • Digital angle protractor with data lock function.
    • Unit conversion, decimal part in degrees, and minutes switching.
    • The 2 in 1 Digital Protractor has both angle measurement and metric length measurement functions for measuring the internal and external angles of workpieces.

    High precision digital protractor

    Locking mechanism for locking at any angle

    • The reliable locking function allows you to lock the angle at any desired position.
    • Turn clockwise to release the knob.
    • Drawer-type battery compartment for easy battery replacement.
    • Use 3V CR2032 button cell battery, service life over 2000 hours, negative pole facing up, positive pole facing down when installing the battery.




    Application

    The digital protractor is widely used in railway systems, hydraulic systems, industrial automation, air vehicle industry, machinery industry, construction industry, biology, medicine, robotics and other fields that need to measure and control angles.

    Digital protractor applications

    Specs
    Model SISCO-DP360-200
    Measuring Range 0~360
    Body Length 0-200mm(7")
    Indexing Value 0.05°
    Accuracy ±0.3
    Repeatability 0.05°
    Power Supply 3V CR2032 * 1 grain, life more than 2000 hours
    Package Type Color card + blister package
    Weight with Packaging 211g



    Details

    2 in 1 digital protractor details

    FAQs

    Q1: What is a digital protractor?
    A1: The digital protractor is a device for measuring small angles, which can be used to measure tilt for horizontal position, parallelism, and perpendicularity of two parts, straightness of machine tools and instrument guides, table flatness, and flatness of flat plates, etc.

    Q2: How does the digital protractor work?
    A2:  When the axis in the digital protractor base is rotated in one direction, the count increases, and when the direction of rotation is changed, the count decreases. The count is related to the initial position of the goniometer. When the goniometer is initialized, its count is set to 0. By calculating the angle of rotation, the position and speed can be easily measured.

    Q3: What is the accuracy of the digital protractor?
    A3: Digital Protractor measure an angle over 360 degrees with a high accuracy of 0.1 degrees.

    Tips: Digital protractor troubleshooting

    1. The screen does not display or the display is blurred, the possible causes are: the battery is not properly installed or the voltage is too low. Solution: Reinstall the battery or replace it with a new one.

    2. the screen measurement value display abnormal may appear due to: rapid shaking caused by the digital protractor's internal response is not timely. Solution: Enter calibration mode and reinstall.

    Warranty

    Thank you for buying industrial test and measurement equipment on SISCO.com, all products sold by SISCO and the partner cover a 12 months warranty, effective from the date of receiving the products.


    What is covered?

    SISCO is responsible for providing free spare parts, and free technical support to assist the customer to repair the defective products until the problem is solved.


    What is not covered?

    • Product purchased from anyone other than a SISCO store or a SISCO authorized reseller.
    • Expendable parts.
    • Routine cleaning or normal cosmetic and mechanical wear.
    • Damage from misuse, abuse or neglect.
    • Damage from use of parts other than SISCO approved.
    • Damage from use outside the product’s usage or storage parameters.
    • Damage from use of parts not sold by SISCO.
    • Damage from modification or incorporation into other products.
    • Damage from repair or replacement of warranted parts by a service provider other than a SISCO authorized service provider.
    • Damage caused by the application environment not meeting the product usage requirements and the failure to perform preventive maintenance.
