A handheld underground metal detector is a portable electronic device designed to detect and locate buried magnetic metal objects. Lightweight and battery-powered, this metal detector is easy to carry and maneuver in different terrains. Hand held metal detector features a thermoplastic ABS housing, the material allows for ergonomic designs with comfortable grips and smooth finishes, improving user experience.
LCD Screen Display & Simple Buttons
- User-Friendly Interface. An LCD display often comes with a digital system, allowing users to adjust settings such as sensitivity. The interface is intuitive and reduces the learning curve for beginners. And this metal detector with screen rotation function, convenient for multiple people to view the screen.
- Precise Control. Physical buttons make users can fine-tune settings before scanning, ensures more accurate identification of metal targets, avoiding false positives.
- Durability and Reliability. Physical buttons are robust and less prone to software glitches compared to touchscreen controls. And simple button controls often consume less power than touchscreens or complex interfaces.

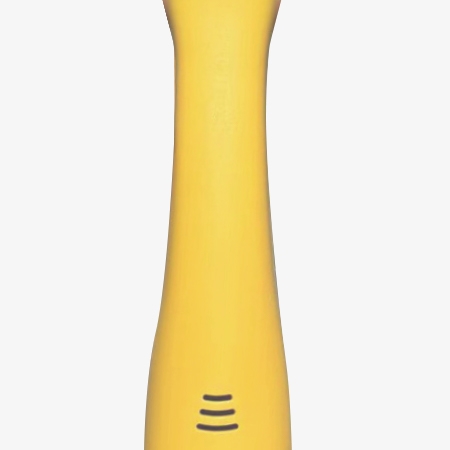

Adopts Thermoplastic ABS Housing
- Lightweight Design. One of the key benefits of ABS is its low density compared to metals. Hand held underground metal detector made with ABS are lighter, reducing operator fatigue during prolonged use.
- Weather and Corrosion Resistance. ABS thermoplastic is resistant to moisture and many environmental factors. Unlike metal housings, it does not rust or corrode, making the detector ideal for use in wet soils or humid climates.
Application
SISCO's handheld underground metal detector is widely used in various fields. In construction and engineering, it detects underground pipes, and rebar to prevent damage during excavation. It is also applied in environmental surveys to identify buried debris or scrap metals, ensuring safety and efficiency in multiple industries.
Scrap Metal Recycling
Construction Industry
Garden Construction
Railway Station
| Model | SISCO-HMD-880 |
| Measurement Range | Maximum measurement depth is 3 meters |
| Display | LCD display (signal level, battery capacity, magnetic field polarity, sensitivity adjustment, 50/60Hz warning) |
| Housing Material | Thermoplastic ABS housing |
| Power Supply | 2*AA Alkaline battery |
| Protection | IP54 & Nema 4 |
| Operating Temperature | -20 ℃~50 ℃ |
| Storage Temperature | -40 ℃~60 ℃ |
| Dimension | 1090*88*67mm (L*W*H) |
| Gross Weight | About 2kg |
Q1: What is a handheld metal detector?
A1: A handheld underground metal detector is a portable electronic instrument designed to locate metallic objects buried beneath the ground surface. Especially when the field encounters ferromagnetic metal, it is disturbed, and the detector alerts the user through audio tones.
Q2: Is this handheld underground metal detector waterproof?
A2: This hand held metal detector is usually not fully waterproof in the sense of being submersible. This metal detector with an IP54 rating are protected against limited dust ingress and splashing water from any direction, making them suitable for light rain, damp soil, and humid environments. It also meets NEMA 4 standards, which provide stronger protection against windblown rain, splashing water, and outdoor weather exposure. However, neither IP54 nor NEMA 4 generally allows for immersion in water.
Q3: How deep can this underground metal detector detect objects?
A3: Under optimal conditions, this underground metal detector can detect large buried objects to a maximum depth of about 3 meters.
Tips: How to maintain handheld underground metal detector?
To maintain this handheld underground metal detector, start by keeping it clean, wipe the body with a soft, damp cloth after each use to remove dirt and moisture. Avoid submerging the detector in water. Check batteries regularly and replace or recharge them to prevent leakage. Store the detector in a dry, cool place away from direct sunlight.
