The luminescence plate reader's professional software can store massive amounts of programs and data and supports more than 10 curve fitting methods, demonstrating powerful data processing and scalability capabilities to fully meet diverse and high-standard needs from scientific research to routine testing.
High Throughput & High Efficiency
- The eight-channel vertical optical path design, combined with a high-sensitivity detector, allows for simultaneous detection of multi-well samples, improving detection efficiency and data consistency, making it suitable for high-throughput screening.
- Covering the visible to near-infrared range, it comes standard with 405nm, 450nm, 492nm, and 630nm filters. Users can extend the wavelength range according to the detection requirements, expanding the instrument's applicability.
- Multiple detection modes allow users to select the appropriate method based on their experimental needs. For example, kinetic methods can be used for real-time enzyme activity monitoring, and dual wavelengths reduce background interference.
Precise Screening & Intelligent Analysis
- The microplate reader luminescence is specifically developed for the detection of pesticide residues and toxins. It can directly calculate inhibition rates, simplifying the data processing workflow for rapid food safety screening.
- The high-precision optical system supports a wide range of absorbance readings with a resolution of 0.001 Abs, offering excellent repeatability and suitability for accurate detection of low-concentration samples.
- The luminometer microplate reader is equipped with professional analysis software that can store 2000 programs and 100,000 sample results, providing more than 10 curve fitting equations and powerful data analysis capabilities.
Applications
Microplate readers are core equipment for quantitative detection in multiple fields. In clinical diagnosis, they detect antigens and antibodies in serum and urine, aiding in the screening of diseases such as hepatitis and tumor markers. In biopharmaceutical research and development, they are used for drug activity evaluation and cytotoxicity detection, supporting new drug development. In food safety testing, they rapidly determine pesticide, veterinary drug residues, and microbial toxins. In animal and plant quarantine, they detect pathogens and antibodies in body fluids to prevent the spread of diseases.
Biomedical Research
Food Safety Monitoring
Animal Quarantine
Clinical Diagnosis
| Model | SISCO-AMR-HBS1096A |
| Lamp | DC12V 22wTungsten halogen lamp |
| Optical Path | 8-channel vertical light path system |
| Wavelength Range | 400~900nm Filter. The default configuration, 405, 450, 492, 630nm, can be installed with up to 10 filters. |
| Reading Range | 0~4.000Abs |
| Resolution | 0.001Abs |
| Accuracy | ≤+0.01Abs |
| Stability | ≤±0.003Abs |
| Repeatability | ≤0.3% |
| Vibration Plate | Three kinds of linear vibration plate function: Adjustable 0-255 seconds |

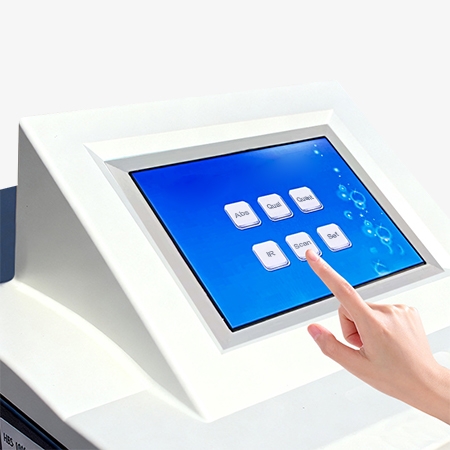

| Display | 8-inch color LCD screen, displays the entire board information, and provides touch screen operation. |
| Software | Professional software can store 200 program groups, 100000 sample results. More than 10 kinds of curve-fitting equations. |
| Power Input | AC 100-240V, 50-60Hz |
| Weight | 11Kg |
| Size | 433mm×320mm×308mm |
Q1: What is the difference between absorbance, fluorescence, and luminescence microplate readers?
A1: Absorbance, fluorescence, and luminescence microplate readers differ mainly in their detection principles. An absorbance reader measures how much light a sample absorbs and is commonly used for ELISA and OD600. A fluorescence reader uses an excitation light source and detects the emitted fluorescence, offering higher sensitivity for DNA, protein, and cell-based assays. A luminescence reader measures light produced directly by chemical or biological reactions without excitation light, providing the highest sensitivity for assays such as ATP and luciferase.
Q2: What is the wavelength range of a microplate reader?
A2: The wavelength range of a microplate reader depends on the detection mode, but most absorbance readers cover approximately 200–1000 nm for UV-Vis measurements, while fluorescence readers use specific excitation and emission ranges set by filters or a monochromator, and luminescence readers typically do not require wavelength selection because they detect total emitted light.
Q3: How fast can a microplate reader read a full plate?
A3: The reading speed of a microplate reader varies by model and detection mode, but most instruments can read a full 96-well plate in just a few seconds for absorbance, typically 5–10 seconds for fluorescence, and slightly longer for luminescence, depending on integration time. High-performance systems can read even faster, especially in endpoint measurements.
Tips: How is a Microplate Reader calibrated?
Calibration typically uses standard solutions or calibration plates:
- Select the appropriate calibration mode according to the instrument manual.
- Measure standard absorbance or fluorescence values.
- Adjust the instrument settings to ensure measurements are within the specified range.
- Regular calibration ensures reliable and accurate results.
