The multimode plate reader is compatible with standard 96-well microplates and wide voltage input, supporting single/dual wavelength detection and various qualitative and quantitative analysis algorithms. It can also be connected to a printer for report archiving, comprehensively meeting the core needs of daily laboratory testing.
No External Shaker Required for Vibration, Uniform Mixing
- Equipped with four commonly used wavelength filters: 405, 450, 492, and 630nm, supporting up to 10 optional wavelengths, suitable for immunoassay, protein quantification, and other multi-scenario detection.
- This multimode reader utilizes vertical 8-channel detection technology, allowing simultaneous reading of data from an entire row of 8 samples. This significantly improves detection efficiency, especially for the rapid screening of large numbers of samples.
- Integrated with 3 vibration plate modes, with adjustable vibration intensity from 0 to 255, eliminating the need for an external shaker. This quickly achieves uniform mixing of samples within the wells, reducing manual operation steps, minimizing inter-well reaction differences, and improving experimental repeatability.
Intuitive Resistive Touchscreen Control

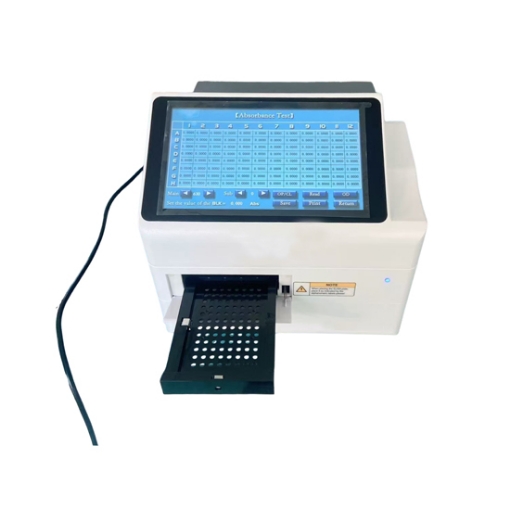

- The multi mode plate reader is equipped with a 10.1-inch resistive touchscreen for intuitive and convenient operation. The built-in software supports both single-wavelength and dual-wavelength detection modes, effectively eliminating background interference.
- Compatible with standard laboratory 96-well microplates, eliminating the need for specialized consumables and reducing experimental costs. It uses a wide voltage design of AC100~240V, compatible with 50/60Hz power frequencies.
- Through workstation software, it supports connection to a standard printer, with optional A4 or thermal printers. After the experiment, detection data, curve graphs, and analysis reports can be printed directly without additional format conversion.
Applications
Microplate readers are core equipment for quantitative detection in multiple fields. In clinical diagnosis, they detect antigens and antibodies in serum and urine, aiding in the screening of diseases such as hepatitis and tumor markers. In biopharmaceutical research and development, they are used for drug activity evaluation and cytotoxicity detection, supporting new drug development. In food safety testing, they rapidly determine pesticide, veterinary drug residues, and microbial toxins. In animal and plant quarantine, they detect pathogens and antibodies in body fluids to prevent the spread of diseases.
Biomedical Research
Food Safety Monitoring
Animal Quarantine
Clinical Diagnosis
Â
| Model | SISCO-AMR-BKEL10C | |
| Measurement Channel | Vertical 8 optical channels | |
| Plate Type | 96-well microplate | |
| Wavelength Range | 400~750nm | |
| Filter | Standard 4 wavelengths of 405, 450, 492, 630nm | |
| Linear Range | 0.000~3.000Abs | |
| Reading Range | 0.000~4.000Abs | |
| Resolution | 0.0001Abs | |
| Repeatability | CV≤0.2% | |
| Stability | ≤0.003Abs/10min | |
| Sensitivity | ≥0.01L/mg | |
| Channel Difference | ≥0.02Abs | |
| Vibration Plate Function | 3 kinds of vibration plate function, adjustable 0~255s | |
| Software(Standard) | Detection Mode | Single/double wavelength |
| Qualitative | Open the CUT-OFF decision formula, supporting the input of judgment condition, validity condition input. grey area setting and other functions | |
| Quantitative | Support linear, Semi-log, natural logarithm, log-log, point-to-point, four-parameter equation, and other quantitative analysis fitting algorithms | |
| Others | Display | 10.1-inch resistive touchscreen |
| Printer(Optional) | Workstation software supports a normal printer(A4 printer and thermal printer can be optional) | |
| lnterface | rs-232*2 | |
| Power Supply | AC 100~240V, 50/60Hz | |
| Instrument Size | 450mm×320mm×300mm | |
| Package Size | 585mm×425mm×405mm | |
| Net/Gross Weight | 11/13kg | |
Q1: What is the difference between absorbance, fluorescence, and luminescence microplate readers?
A1: Absorbance, fluorescence, and luminescence microplate readers differ mainly in their detection principles. An absorbance reader measures how much light a sample absorbs and is commonly used for ELISA and OD600. A fluorescence reader uses an excitation light source and detects the emitted fluorescence, offering higher sensitivity for DNA, protein, and cell-based assays. A luminescence reader measures light produced directly by chemical or biological reactions without excitation light, providing the highest sensitivity for assays such as ATP and luciferase.
Q2: What is the wavelength range of a microplate reader?
A2: The wavelength range of a microplate reader depends on the detection mode, but most absorbance readers cover approximately 200–1000 nm for UV-Vis measurements, while fluorescence readers use specific excitation and emission ranges set by filters or a monochromator, and luminescence readers typically do not require wavelength selection because they detect total emitted light.
Q3: How fast can a microplate reader read a full plate?
A3: The reading speed of a microplate reader varies by model and detection mode, but most instruments can read a full 96-well plate in just a few seconds for absorbance, typically 5–10 seconds for fluorescence, and slightly longer for luminescence, depending on integration time. High-performance systems can read even faster, especially in endpoint measurements.
Tips: How to maintain a Microplate Reader?
- Regularly clean optical components and sample trays.
- Avoid liquid spills inside the instrument.
- Keep the instrument powered off and dry when not in use.
- Replace light sources or lasers as instructed in the manual.
