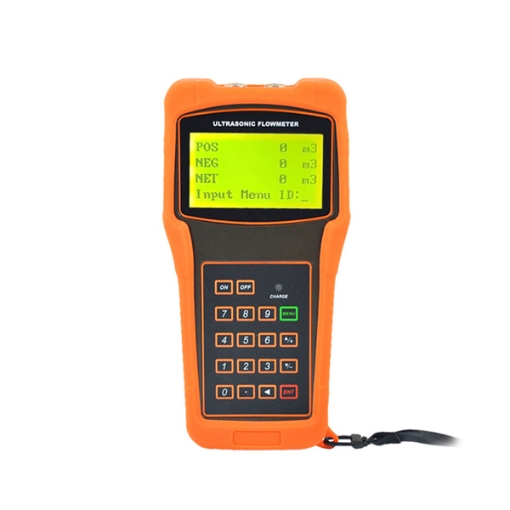

The SISCO ultrasonic flow meter is a high-precision and non-invasive flow measurement device designed for quick and reliable liquid flow testing in various industrial applications. This portable ultrasonic flow meter features a large LCD display that clearly shows instantaneous flow, cumulative flow, flow velocity, and system status, allowing users to monitor data in real time with ease and efficiency.
Wide Pipe Size Compatibility (DN15–DN600)

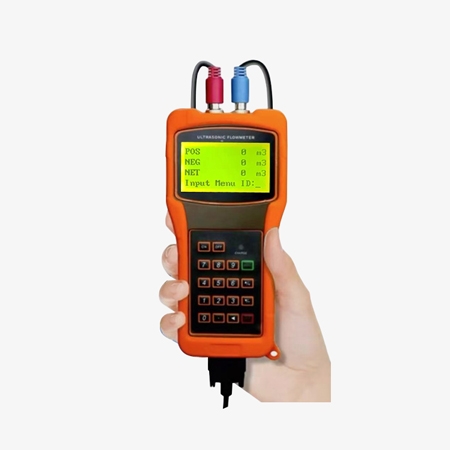

- Portable ultrasonic flow meter features a compact and lightweight structure, making it easy to carry and install on-site.
- This ultrasonic flow meter delivers high-precision measurement performance, with linearity better than 0.5%, repeatability better than 0.2%, and overall accuracy up to ±1%, ensuring reliable flow data in different working conditions.
- Supports a broad measurement range by using different transducer models, allowing accurate flow monitoring for pipe diameters from DN15 to DN600mm, suitable for industrial and municipal pipelines.
Large LCD Display with Real-Time Data
- Features a clear large-screen LCD display that shows instantaneous flow, cumulative flow, flow velocity, and working status simultaneously, allowing users to monitor data quickly and efficiently.
- Designed for field applications, the device supports continuous working for more than 12 hours, ensuring stable performance during long-term flow measurement tasks without frequent recharging.
- Equipped with standard 4–20mA analog output, and optional RS485 Modbus communication protocol, enabling easy integration with PLC systems, data loggers, and industrial automation control systems.
Application
SISCO flow meter calculates the mass flow rate of the fluid based on the power required to maintain the constant temperature difference. Thermal mass flow meters are commonly used in applications where precise measurement of gas flow is required, such as in biotechnology, medical equipment, scientific research, chemical and petrochemical industries.
Medical Equipment
Scientific Research
Petrochemical Industry
Biotechnology
| Model | SISCO-FLOW-WCT2000H |
| Linearity | 0.5% |
| Repeatability | 0.2% |
| Accuracy | ±1% of reading, flow velocity > 0.2 m/s |
| Response Time | 0–999 seconds, user adjustable |
| Flow Range | 0.1–12 m/s |
| Measuring Diameter | 15 mm–6000 mm |
| Fluid Type | Single, uniform liquids capable of conducting ultrasonic waves |
| Totalizer | 7-digit positive, negative, and net totalizer |
| Fluid Type | Single, uniform liquids capable of conducting ultrasonic waves |
| Security | Parameter locking; data changes require unlocking |
| Display | 4×8 Chinese characters or 4×16 English characters |
| Communication Interface | RS-232, compatible with Fuji ultrasonic flowmeter; can also be customized upon request |
| Sensor Cable | Standard 5 m × 2, extendable to 10 m × 2 |
| Power Supply | 3×AAA built-in Ni-H battery, up to 12 hours per charge; AC100–240V adapter |
| Data Logging | Built-in data logger, up to 2000 records |
| Manual Totalizer | 7-digit, can be started by button for calibration use |
| Housing Material | Flame-retardant ABS |
| Dimensions | 210 × 90 × 30 mm |
| Main Unit Weight | 0.5 kg |
Q1: What is a flow meter used for?
A1: A flow meter is a device used to measure the flow rate of liquids or gases in a pipeline. It provides real-time data such as instantaneous flow and totalized flow, helping users monitor, control, and optimize industrial processes in water treatment, HVAC systems, chemical processing, and other applications.
Q2: What types of flow meters are commonly used in industry?
A2: During the production of a flow meter, several steps are required such as coil winding, lining processing, and electrode assembly. This series of operations can cause a certain amount of error and dispersion in the device, so a calibration process is required to correct the accuracy.
Q3: How do I choose the right flow meter for my application?
A3: Common types of flow meters include ultrasonic flow meters, electromagnetic flow meters, turbine flow meters, and differential pressure flow meters. Each type is designed for
different media and working conditions, with ultrasonic flow meters being widely used due to their non-invasive installation and high measurement accuracy.
Tips: Advantages of Clamp-on Ultrasonic Flow Meter
The portable ultrasonic flow meter adopts non-contact measurement, can be installed without damaging the pipeline, supports pressure operation, and greatly reduces installation and maintenance costs and the risk of medium leakage; it has a wide range of coverage and can adapt to a variety of media and pipeline materials. It is easy to install and maintain without affecting production. It can not only provide accurate flow data to optimize processes and costs, but also assist in leak detection.
