This smart biological microscope features built-in intelligent operating software and a generous 32GB internal storage, making it easy to capture photos, record videos, annotate findings, and store research data. Its unique XYZ sliding stage, replacing the traditional mechanical caliper stage, allows precise movement in all directions and extends the working distance. This optimized platform design significantly enhances workflow efficiency, making micro-observation more intuitive, flexible, and productive.
Foldable Touchscreen & Long Battery Life

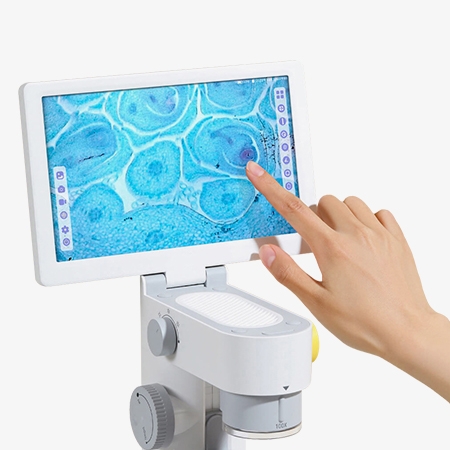

- Touch-sensitive Foldable Screen: This electronic microscope features a responsive multi-point touchscreen display with smooth, fluid operation. Its foldable screen design combines practicality with enhanced aesthetics, satisfying your dual pursuit of beauty and functionality.
- Rotating Objectives: A rotating turret of the microscope holds three interchangeable optical objectives, allowing seamless switching between magnification levels to suit various observation needs.
- Powerful Battery Life: Powered by a 3500mAh rechargeable lithium battery with fast Type-C charging, this biological microscope ensures long-lasting performance for daily research and field exploration.

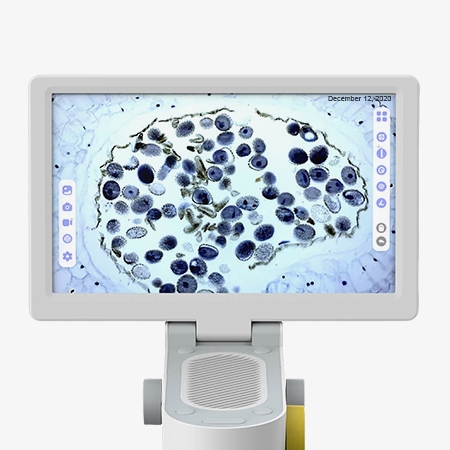

Ultra-Clear Imaging with 9-Inch HD Screen
- High-Definition Large Screen: This electron microscope features a 9-inch display supporting 1080P HD resolution. Vibrant colors fill the entire screen, delivering higher pixel density than comparable microscopes at the same magnification level. Experience the microscopic world with unparalleled clarity.
- Precision Imaging: The integrated 5MP high-resolution CMOS sensor captures fine micro-details with accuracy and true-to-life reproduction, offering superior image quality compared to similar magnification microscopes. Every microscopic structure comes to life with crisp definition and vibrant color.
Dual LED Illumination & Stepless Zoom Control

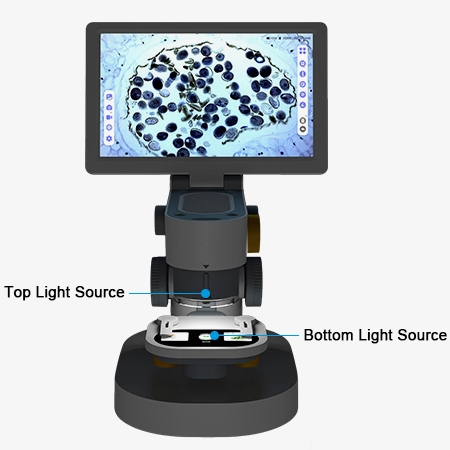

- Dual Light Sources: Our biological microscope features a dual-LED illumination system with top and bottom light sources. This design not only accommodates standard transparent specimens but also enables clear observation of non-transparent specimens. Brightness is infinitely adjustable, ensuring clear imaging even in low-light conditions.
- Stepless Zoom: The digital microscope supports multi-level stepless zoom magnification adjustment, accommodating most observation scenarios requiring varying magnifications. Its simple operation and user-friendly design let you effortlessly explore every corner of the microscopic world.
Applications
In electronics manufacturing, SISCO's microscopes assist engineers in inspecting tiny circuit components for precise soldering and assembly. In watch repair, technicians use microscopes to examine intricate parts for accurate restoration and repair. During chemical experiments, researchers observe microscopic reactions and cellular structures. In gem appraisal, experts rely on microscopes to identify internal features and flaws, determining the gemstone’s quality and authenticity.
Watch Repair
Chemical Experiments
Gem Appraisal
Electronics Manufacturing
Â
| Model | SISCO-DM-T1 |
| Magnification | Three Lenses: 100X, 800X, 1200X |
| Display | 9-inch IPS Capacitive Touchscreen |
| Screen Resolution | 1024 × 600 |
| Photo Resolution | 720P, BMP |
| Video Resolution | 720P, AVI |
| PC Output Resolution & Frame Rate | 1280 × 720 / 30 FPS |
| Focusing Mode | Manual |
| Measurement Function | Supported |
| Digital Zoom | Not Supported |
| Light Source | Top & Bottom LED Lights (Independently Adjustable Brightness) |
| Internal Storage | 32GB |
| White Balance | Auto |
| Exposure | Auto |
| Image Sensor Size | 1/2.8'' |
| Lens Structure | 5G |
| USB-A Port Function | Mouse |
| Type-C Port Function | Disk, UVC, Charging |
| Operating Temperature | -10°C ~ +45°C |
| Operating Humidity | 30% ~ 85% RH |
| Working Current | 700 mA |
| Power Consumption | 3.5 W |
| Battery Capacity | 3500 mAh Lithium Battery |
| PC Operating System | Windows XP / 7 / 8.1 / 10; Mac OS X 10.5 or above |
| Supported Languages | English, Chinese |

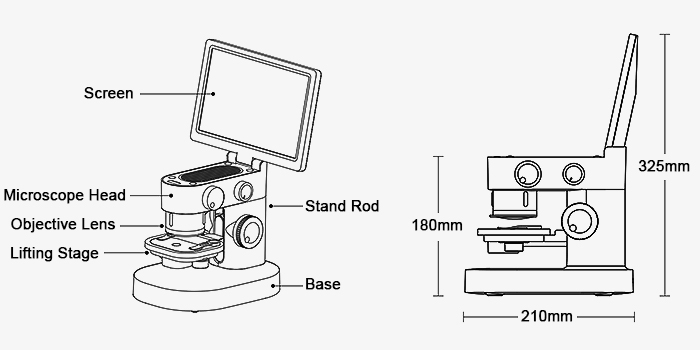

| Dimensions | 210×180×325 (mm) |
| Net Weight | Approx. 1.38kg |
Â
Details
Q1: What scenarios is this touchscreen electronic microscope suitable for?
A1: This electron microscope offers broad applicability. It can be used in biological inspection fields, such as observing cell structures and microbial morphology. In industrial maintenance, it can detect surface defects or wear on precision parts. It is also suitable for daily use by microscopic exploration enthusiasts, such as examining plant leaf stomata or insect compound eye structures, meeting diverse exploration needs.
Q2: Is the touchscreen operation complicated? Is it easy for beginners to master?
A2: The touchscreen interface of this digital microscope is designed to be highly intuitive and user-friendly, featuring responsive multi-touch capabilities and smooth operation. The built-in smart software boasts a clean, uncluttered interface with clearly defined functional zones. Even first-time users can quickly familiarize themselves with basic operations and embark on their microscopic journey with ease.
Q3: Does the microscope offer sufficient storage capacity? Can it handle extended recording sessions?
A3: This biological microscope features a built-in 32GB storage capacity, easily accommodating extensive photo and video archives. Whether documenting lengthy experimental observations or multiple microscopic discoveries, you can record with confidence, without the need for frequent storage cleanup, and fully meet your documentation needs.
Tips: How to extend the microscope's battery life?
- To maximize battery endurance when using this touchscreen digital microscope, turn it off promptly when not in use to prevent unnecessary power drain.Â
- Additionally, minimize frequent power cycling, as each startup consumes significant energy.Â
- Furthermore, when the battery level is low, promptly charge it using the Type-C port to maintain sufficient power. This ensures the microscope remains ready for use whenever needed, allowing you to explore the microscopic world for extended periods.
