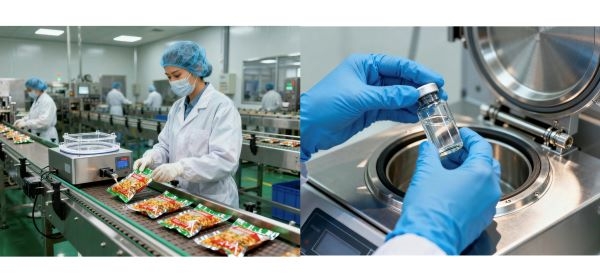

A vacuum leak tester is a critical device for evaluating the sealing integrity of packages, containers, and industrial components—widely used in food, pharmaceuticals, medical devices, and electronics. To ensure accurate, reliable test results and extend the instrument’s lifespan, proper operation is essential. This guide breaks down the key steps, influencing factors, and maintenance tips for using a leak tester effectively.
What Factors Affect the Accuracy of Vacuum Leak Test Results?
Before operating the tester, understanding potential accuracy disruptors helps you avoid errors. Below are the core factors to address:
Sample Preparation & Handling
The condition and preparation of your test sample directly impact results:
- Sample Integrity: Ensure the sample (e.g., a food pouch, pharmaceutical vial) is free of pre-existing damage (e.g., tears, dents) that could mimic leaks.
- Sample Placement: Position the sample correctly in the test chamber—avoid overcrowding, and ensure it is fully exposed to the vacuum/pressure environment (e.g., submerge liquid-tight samples completely in the colorimetric water for bubble tests).
- Pre-Test Cleaning: Wipe off dust, oil, or residue from the sample and chamber. Contaminants can block tiny leaks or interfere with pressure sensors.
Environmental Conditions
Ambient factors can distort pressure readings and sensor performance:
- Temperature: Most testers operate optimally at 15°C–50°C (check your model’s specs). Extreme temperatures cause air expansion/contraction, leading to false pressure changes. Use a temperature-stabilized room or allow the tester to acclimate before use.
- Humidity: High humidity can damage internal electronic components (e.g., microprocessors, pressure sensors) or cause condensation in the chamber. Store and use the tester in a dry environment (relative humidity < 80%).
- Electromagnetic Interference: Nearby equipment (e.g., large motors, welding machines) can disrupt the tester’s digital controls. Keep the tester at least 1 meter away from high-interference devices.
Instrument Performance & Calibration
A well-maintained, calibrated tester is the foundation of accurate results:
- Calibration Schedule: Calibrate the tester every 3–6 months (or as per the manufacturer’s recommendation) using standard leak references. For example, use a certified leak pin (1.0–3.0 μm) to verify detection sensitivity for high-voltage discharge models.
- Sensor Health: Check pressure sensors for drift or damage. If readings are inconsistent (e.g., pressure fails to stabilize during a test), replace the sensor promptly.
- Gas Source Quality: Use clean, dry compressed air (0.5–0.9 MPa, depending on the model) for positive-pressure tests. Moist or oily gas can clog valves and corrupt pressure data.
Human Factors
Operator error is a common cause of inaccurate tests:
- Familiarity with the Model: Different testers (e.g., vacuum decay vs. bubble method) have unique workflows. Read the user manual thoroughly.
- Adherence to Timing: Follow test duration guidelines (e.g., 0–60 minutes of vacuum holding time for lab models). Cutting tests short may miss slow leaks; overextending tests wastes time.
- Cross-Contamination: Clean fixtures (e.g., bottle holders, electrode rollers) between samples, especially when testing different materials (e.g., switching from food pouches to pharmaceutical vials). Residue from one sample can contaminate the next.
Procedures of Operating a Vacuum Leak Tester
While specific steps vary by model (e.g., single-channel vs. multi-channel, negative vs. positive pressure), the following workflow applies to most SISCO vacuum leak testers:
Step 1: Pre-Operation Preparation
Inspect the Tester: Check power supply and cables for damage. Ensure the power switch is in the “Off” position before plugging in. Verify gas source connections: For positive-pressure testers, connect the Ф8mm polyurethane tube to a clean compressed air source (0.4–0.9 MPa). Check consumables: Replace expired reagents (e.g., colorimetric water for bubble tests) and ensure the microprinter (if equipped) has paper.
Calibrate (If Needed): Follow the manual to run a calibration cycle. For example, use a standard pressure gauge to confirm the tester’s pressure readings are within ±1% accuracy.
Prepare the Sample: Clean the sample and remove any packaging (e.g., outer boxes) that could block the test chamber. For liquid-tight samples (e.g., infusion bottles), fill the test chamber with colorimetric water (if using the bubble method) to the recommended level.
Step 2: Set Up Test Parameters
Turn On the Tester: Switch on the power and wait for the touch LCD screen to initialize. Select “New Test” from the menu.
Input Test Conditions: Choose the test principle.
Set parameters:
- Vacuum level (e.g., 0–400.0 KPa for vacuum decay models).
- Holding time (e.g., 5 minutes for food pouches).
- Pressure tolerance (e.g., ±0.5 KPa to trigger a leak alert).
For multi-channel testers, assign parameters to each channel (4 samples maximum).
Step 3: Run the Test
Load the Sample: Place the sample in the test chamber or fixture.
For example:
- Soft packages: Lay flat in the vacuum chamber to avoid folding.
- Glass vials: Secure in the roller electrode (for high-voltage discharge models) to ensure even contact.
- Close and seal the chamber tightly to prevent external air from entering.
Start the Test: Press “Start” on the touchscreen.
The tester will automatically:
- Evacuate the chamber (negative pressure) or apply compressed air (positive pressure).
- Maintain the preset pressure and monitor changes via the pressure sensor.
- Trigger an alarm if a leak is detected (e.g., pressure rises unexpectedly, bubbles form in colorimetric water).
Record Data: After the test ends (automatic or manual stop), view results on the screen (e.g., leak rate, pressure curve). Use the microprinter (if equipped) to print a report for quality records, or export data via the RS232 interface to a LIMS system.
Step 4: Post-Test Cleanup & Storage
Remove the Sample: Open the chamber and take out the sample. Dispose of damaged samples (e.g., leaky vials) per safety guidelines.
Clean the Tester: Wipe the chamber and fixtures with a soft, dry cloth. For colorimetric water residues, rinse with distilled water and dry thoroughly. Clean the electrode (for high-voltage models) with a lint-free swab to remove dust.
Shut Down the Instrument: Turn off the power and disconnect the gas source. Store the tester in a dry, dust-free cabinet. For long-term storage (e.g., >1 month), cover with a dust cover and remove batteries (if applicable).
What Should You Do If the Vacuum Leak Tester Malfunctions?
Even with proper care, malfunctions may occur. Here’s how to troubleshoot common issues:
Problem 1: Pressure Fails to Reach Preset Level
- Check if the chamber is sealed tightly (e.g., damaged gasket). Replace the gasket if worn.
- Verify the gas source pressure (e.g., 0.5–0.7 MPa for most models). Adjust the regulator if needed.
- Inspect for leaks in the gas tube (e.g., cracks). Replace the tube if faulty.
Problem 2: False Leak Alerts
- Calibrate the pressure sensor—drift may cause incorrect readings.
- Check the sample for pre-existing damage (e.g., a tiny tear in a pouch) that was missed during preparation.
- Ensure the test environment is stable (e.g., no sudden temperature changes).
Problem 3: No Data Output (Printer/RS232)
- For printers: Check if paper is loaded correctly or if the printer head is dirty. Clean the head with a cotton swab.
- For RS232: Verify the cable connection to the LIMS system. Restart both the tester and the system to re-establish communication.
Problem 4: High-Voltage Discharge Tester Not Detecting Leaks
- Check the roller electrode alignment—samples may not be making proper contact. Adjust the electrode position.
- Verify the test voltage (0–20 kV). Calibrate the voltage sensor if readings are off.
If issues persist, do not disassemble the tester yourself. Contact SISCO’s technical support team with your model number and a detailed description of the problem for professional repair.By following these steps, you can ensure your vacuum leak tester delivers accurate, consistent results—protecting product quality and compliance in industries like food, pharmaceuticals, and medical devices. For more details on vacuum leak testers, visit SISCO online store or contact our sales team for personalized support.
