The working principle of the piston soil sampler kit is to insert the sampling tube into the soil and then use the piston to move inside the sampling tube to form a sealed soil sample. This soil sampler can collect relatively undisturbed soil samples and is suitable for sampling various types of soil.

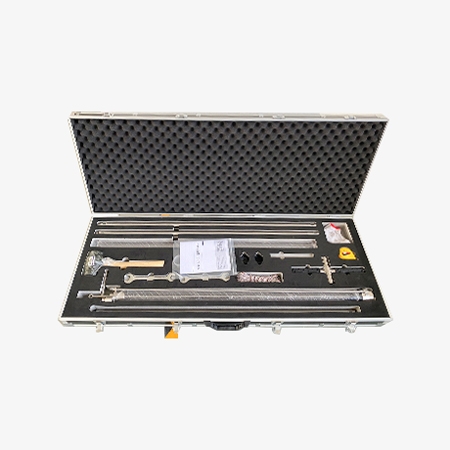

Easy to assemble and disassemble
- The modular design of the piston type soil sampler kit makes it easy to carry and clean, suitable for long-term operation in the field.
- The piston soil sampler kit comes with a complete set of components, typically including a sampling tube, extension rod, T-handle, piston head, portable toolbox, etc.

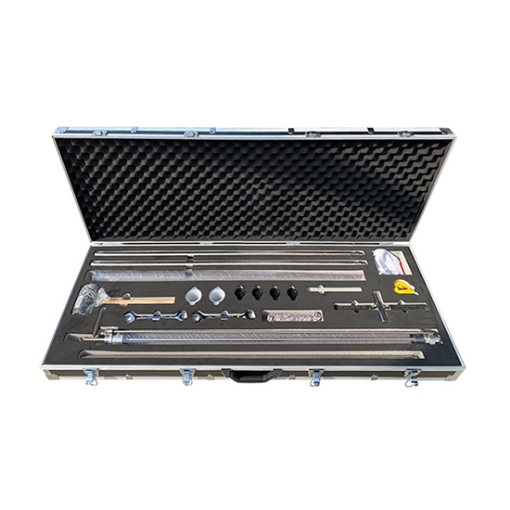

- The entire set of tools is assembled in a portable case, making it convenient for field operations and transportation.
Adjustable depth sampling

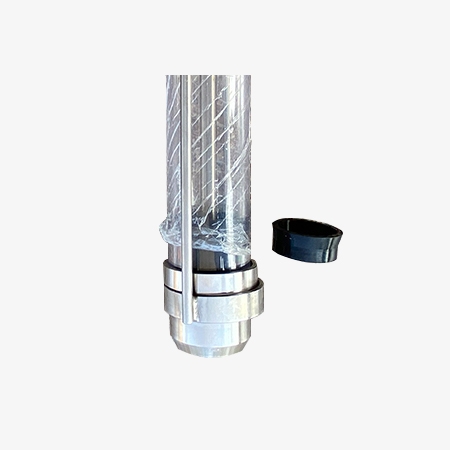

- The piston type soil sampler kit has a piston drive system that can extract soil samples in a sealed state on the pipe wall through the built-in piston, maintaining sample integrity and reducing interference from air and external impurities.
- It has extractive sampling, convenient and fast sampling, and easy sampling, convenient and labor-saving.
- The piston soil sampler kit adopts a plunger-type structural design, the plunger is driven by a handle to ensure that the soil is not compacted or disturbed during sampling, maintaining clear sample layers and complete structure.
Applications
A soil sampler is widely used in agriculture, environmental monitoring, and geotechnical analysis. It is ideal for sampling in wetlands, tidal flats, and can collect soils such as marsh, peat, and sediment. The sampler helps assess soil health, nutrient levels, and pH in agriculture, detects contamination in environmental studies, and evaluates soil stability in construction projects. It also supports research, land reclamation, and conservation by providing insights into soil quality and promoting sustainable land management.
River
Peat Soil
Lake
Tidal Flat
Â
| Model | SISCO-SS-JC801A |
| Main Components | Sampler, extension rod, stainless steel cutting head, and engineering plastic cutting head |
| Sampling Tube | 100cm in length and 4cm in diameter |
| Sampling Depth | 5m |
| Sampling Method | Removable |
| Operating Mode | Manual operation |
Â

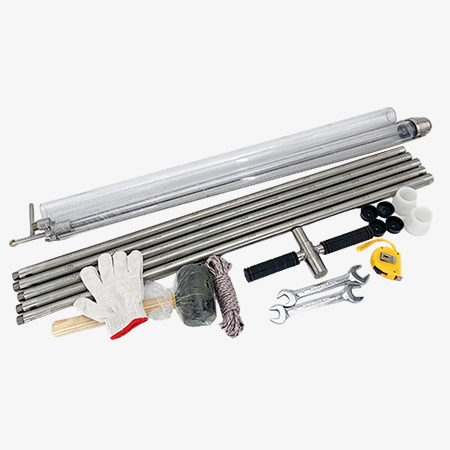

Packing list
- 1*Sampler
- 1*Anti stretch rope
- 1*Cotton gloves
- 2*Sampling tube
- 1*Strike the handle
- 1*Energy-absorbing hammer
- 5*One meter extension pole
- 2*Engineering plastic cutting head
- 4*Spare piston
- 1*Steel tape measure
- 2*Wrenches
- 1*Aluminum alloy box
Q1: What is a piston soil sampler kit?
A1: The piston soil sampler is a manual or mechanically driven soil sampling tool that uses a piston structure to reduce sample disturbance. It is mainly used in agriculture, environmental investigation, soil pollution detection, and other fields.
Q2: What is the difference between a piston soil sampler and a traditional soil sampler?
A2: The piston design makes the sample more complete and less prone to loosening during the sampling process, especially suitable for conditions such as soft soil and wet soil. Compared to traditional samplers, it can obtain more accurate undisturbed samples.
Q3: Can piston soil samplers be used for groundwater sampling or gas sampling?
A3: This type of sampler is mainly used for soil sampling and is not suitable for collecting water or gas samples. If water sample collection is required, please choose specialized water sampling equipment.
Tips: How to clean and maintain the piston soil sampler?
Sampling tubes are generally made of stainless steel or high-strength alloys and can be reused after cleaning and disinfection. After each use, the following operations need to be performed:
- Thoroughly clean all components with clean water or neutral detergent.
- Store in a dry and ventilated environment after drying.
- Regularly inspect and replace the piston and sealing ring to ensure sealing performance.
