The sampling tube of the stainless steel core soil sampler kit can be split into two halves for easy observation of the soil layer structure of the sample and easy extraction for further analysis. Samplers are usually made of stainless steel or galvanized steel, which is sturdy, durable, and has good corrosion resistance. It can be combined with accessories such as handles, slide hammers, connecting rods, etc., to meet the sampling needs of different depths and terrains.

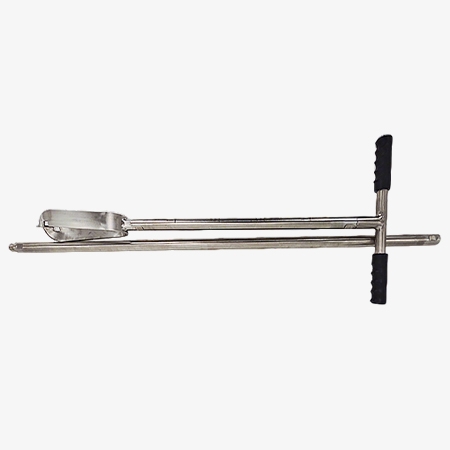

Detachable sleeve structure
- The stainless steel core soil sampler kit adopts a split design, it facilitates on-site observation of soil profiles, colors, and textures, making it suitable for applications such as geological surveys, environmental assessments, and agricultural research.
- The complete set of tools is packed in a reinforced portable case for easy transportation and on-site use, improving work efficiency.
- The stainless steel core soil sampler kit is equipped with a sturdy T-shaped handle and sampling rod. It is easy to operate and can easily penetrate soil layers of different hardness, ensuring consistent sampling depth.

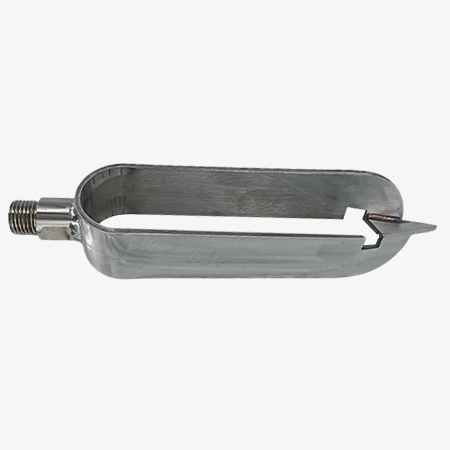

High-strength materials
- The main components of the stainless steel core soil sampler kit are made of stainless steel or carbon steel, which have excellent corrosion resistance and durability, and are suitable for various soil conditions.
- It provides sampling tubes of different diameters and lengths to meet various sampling depths and sample requirements.
- This manual and convenient stainless steel core soil sampler kit can be used to sample and classify soil at different depths and areas in a reasonable manner. It has the advantages of collecting soil samples in full layers, equal amounts, and fast and easy operation.
Applications
A soil sampler is widely used in agriculture, environmental monitoring, and geotechnical analysis. It is ideal for sampling in wetlands, tidal flats, and can collect soils such as marsh, peat, and sediment. The sampler helps assess soil health, nutrient levels, and pH in agriculture, detects contamination in environmental studies, and evaluates soil stability in construction projects. It also supports research, land reclamation, and conservation by providing insights into soil quality and promoting sustainable land management.
River
Peat Soil
Lake
Tidal Flat
Â
| Model | SISCO-SS-JC803A |
| Material | Stainless steel |
| Sampling Diameter | 4m |
| Sampling Length | 20cm |
| Corrosion Resistance | Strong |
| Sampling Depth | 2m |
| Applicable Soil Types | Loam, sandy soil, humus soil, etc |
Â

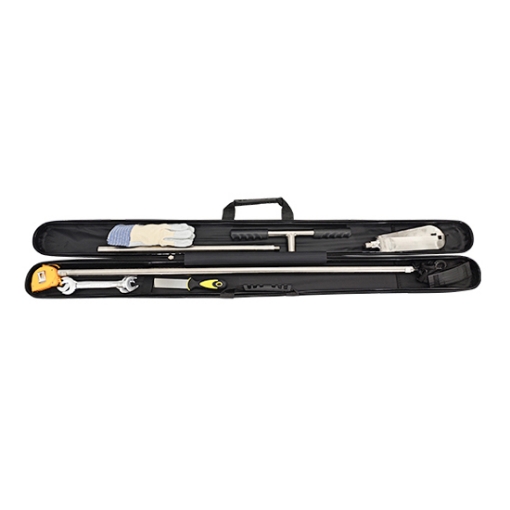

Packing list
- 1*Heart-shaped drill bit
- 1*T-shaped handle: 1m
- 1*Extension rod: 0.5m
- 2*Wrenches
- 1*Steel tape measure
- 1*Scraper
- 1*Convenient bag
Q1: What is the standard split soil sampler kit?
A1: The standard split soil sampler kit is a professional soil sampling tool used for environmental surveys, geological analysis, and agricultural research, primarily for obtaining representative samples from surface or shallow soils. This kit includes split-type sampling tubes, sampling heads, hammer heads, connecting rods, and other components.
Q2: How does the standard split soil sampler kit work?
A2: The operator uses a hammer or manual method to insert the split sampling tube into the soil, collects samples at the required depth, and then removes them. Samples are usually stored in inner tubes or liners for easy transportation and experimental analysis.
Q3: What is the material of the standard split soil sampler kit?
A3: Most standard kits are made of stainless steel or carbon steel material, which has good corrosion resistance. Some models offer galvanized or epoxy coatings to enhance durability and meet the operational needs of different environments.
Tips: How to use the standard split soil sampler kit correctly?
The operator uses a hammer or manual method to insert the split sampling tube into the soil, collects samples at the required depth, and then removes them. The standard split soil sampler kit is usually stored in inner tubes or liners for easy transportation and experimental analysis.
- Connect the T-shaped handle with an extension rod and drill bit using a wrench.
- Rotate the T-shaped handle clockwise, and the drill bit will slowly penetrate the soil.
- Upon reaching a fixed depth, rotate the T-shaped handle counterclockwise and remove the drill bit.
- Use a scraper to remove soil samples from the drill bit and complete the sampling in one go.
- After use, please wipe all equipment clean with a cloth and place it in an aluminum box
