During soil sampling, users may encounter various soil textures, such as sediment, marsh, and mud-carbon soils, which are soft and prone to borehole shrinkage and collapse. This poses challenges for layer-by-layer and deep sampling. To address this, SISCO has specifically designed a fixed-depth sediment sampler.
Efficient Fixed-Depth Soil Core Sampler for Deep and Stable Sampling

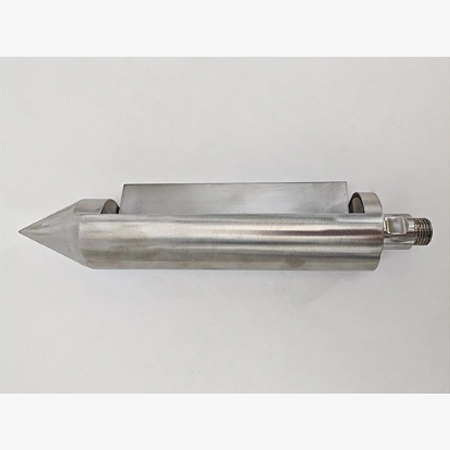

- The soil core sampler features an ingeniously designed drill bit for fixed-depth sampling, preventing borehole collapse and ensuring efficient and quick sampling.
- This stainless steel sampling can be equipped with different extension rods for sampling at various depths. The standard configuration allows for a sampling depth of up to 10 meters, covering a wide sampling area.
Stainless Steel Sampling Tools with Compact Storage and Easy Use

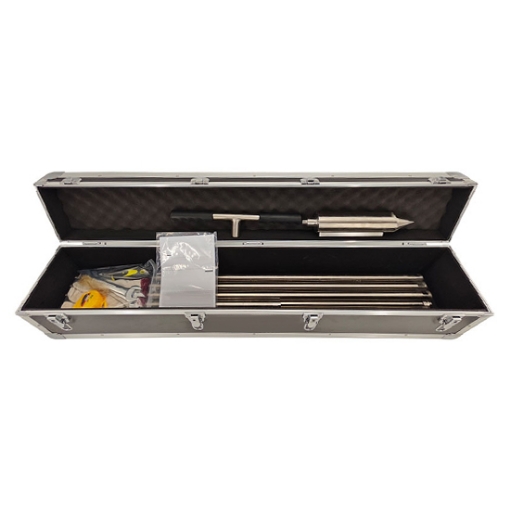

- SISCO stainless steel sampling tools in the kit features a compact aluminum alloy box design that saves space and makes storage and organization easy.
- The soil core sampler kit are easy to clean, corrosion-resistant, wear-resistant, and durable. Additionally, it comes fully equipped with disassembly tools and sample preservation accessories, making the assembly and disassembly of the instrument convenient.
Applications
A soil sampler is widely used in agriculture, environmental monitoring, and geotechnical analysis. It is ideal for sampling in wetlands, tidal flats, and can collect soils such as marsh, peat, and sediment. The sampler helps assess soil health, nutrient levels, and pH in agriculture, detects contamination in environmental studies, and evaluates soil stability in construction projects. It also supports research, land reclamation, and conservation by providing insights into soil quality and promoting sustainable land management.
River
Peat Soil
Lake
Tidal Flat
Â
| Model | SISCO-SS-JC0203 |
| Sampling Depth | 10m |
| Sampling Diameter | 5cm |
| Sampling Length | 30cm |
| Weight | 10kg |
Â

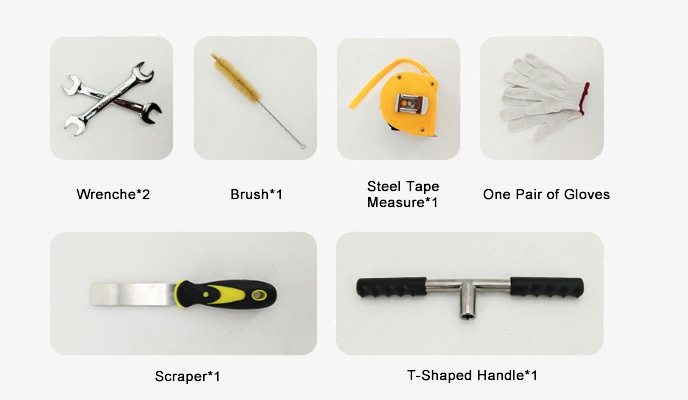

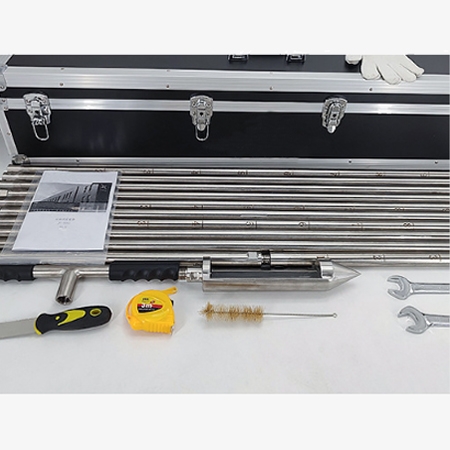

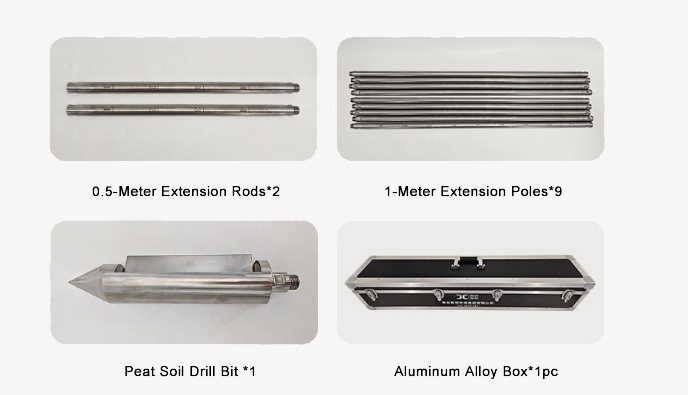

Packing Display
Q1: What is a soil sampler and what is it used for?
A1: A soil sampler is a tool designed to extract samples of soil from the ground for testing. It’s commonly used in agriculture, gardening, environmental monitoring, and research to assess soil health, nutrients, pH, moisture levels, and contamination.
Q2: How deep can a soil sampler go?
A2: The depth a soil sampler can reach depends on its type and design. Manual samplers typically go up to 6 to 30 cm, while auger or power-driven samplers can reach depths of 1 meter or more. Specialized soil core samplers can even penetrate up to 2 meters or deeper, depending on the conditions and soil type.
Q3: How much dirt is needed for a soil sample?
A3: The amount of soil needed for a sample typically ranges from 500 grams to 1 kilogram (about 1 to 2 pounds), depending on the type of test being performed. For most soil tests, a minimum of 200-300 grams is sufficient, but larger samples may be required for more detailed analysis, such as for soil structure or contamination tests. The key is to ensure the sample is representative of the area being tested, combining several smaller samples from different spots to create a composite sample.
Tips: How to use the soil core sampler kit?
- Connect the T-handle, extension rod, and drill bit using a wrench.
- Rotate the T-handle clockwise, and the drill bit will slowly penetrate the soil.
- Once the fixed depth is reached, rotate the T-handle counterclockwise to remove the drill bit.
- Use the scraper to extract the soil sample from the drill bit, completing the sampling.
- After use, wipe all equipment clean with a cloth and store it in the aluminum case.
