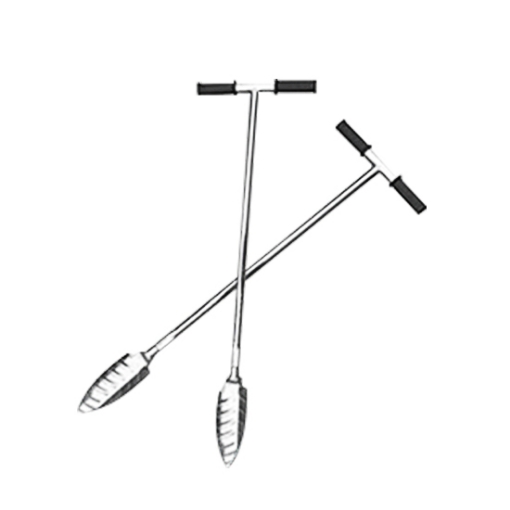

The heart-shaped soil auger sampler with T handle is a professional tool designed specifically for soil sample collection, widely used in agricultural research, soil analysis, environmental monitoring, and other fields. The soil sampler adopts a unique heart-shaped blade design, which can effectively reduce the damage to soil structure, ensure the representativeness and integrity of the sample, and is particularly suitable for undisturbed sampling of medium and shallow soil.

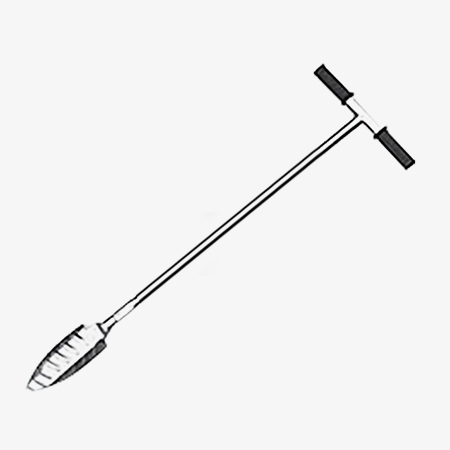

Functions of the soil auger sampler with T-handle

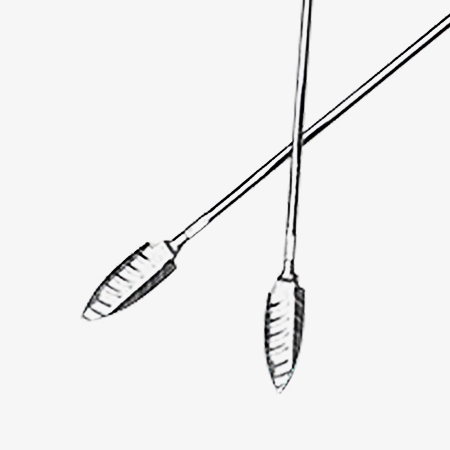

- Heart-shaped blade design: The soil auger sampler with T-handle in line with the principles of human mechanics, with strong penetrating power, suitable for various soil types (such as loam, sand, etc.), especially suitable for sampling loose surface soil.
- High-strength material: It is made of high-quality stainless steel or alloy steel, with extremely strong corrosion resistance and wear resistance, suitable for complex sampling environments in the field.
- Compact structure, easy to carry: The soil auger sampler is lightweight and easy to carry, suitable for convenient outdoor operations.
Made of 304 stainless steel, acceptable for inspection
- The thread of soil auger sampler with T-handle on the surface of the heart-shaped soil sampling drill rotates like a screw and self attacks. The double-blade design is very easy to use, and a 1-meter soil sample can be taken in 3 minutes.
- A single person can complete the soil auger sampler process without additional power, suitable for laboratory and on-site work.
- The blade is sharp, and the soil sampler section is neat, which can effectively reduce disturbance and preserve the true soil structure.
Applications
A soil sampler is widely used in agriculture, environmental monitoring, and geotechnical analysis. It is ideal for sampling in wetlands, tidal flats, and can collect soils such as marsh, peat, and sediment. The sampler helps assess soil health, nutrient levels, and pH in agriculture, detects contamination in environmental studies, and evaluates soil stability in construction projects. It also supports research, land reclamation, and conservation by providing insights into soil quality and promoting sustainable land management.
River
Peat Soil
Lake
Tidal Flat
Â
| Model | SISCO-SS-JC802A |
| Material | 304 stainless steel |
| Corrosion Resistance | Strong |
| Sampling Hole Opening | Rotundity |
| Applicable Soil Types | Loam, sandy soil, humus soil, etc |
| Soil Drill |
Multi-functional heart-shaped diamond |
Â
Packing list
- 1*Stainless steel heart-shaped loam drill bit
- 1*T-shaped handle: 35cm
- 1*Extension rod: 50cm
- 2*Wrenches: 19×22mm
- 1*Steel tape measure: 3m
Q1: What is a heart-shaped soil auger sampler?
A1: The heart-shaped soil auger sampler is a manual soil sampling tool used in agriculture, horticulture, environmental research, and other fields. Its unique heart-shaped design facilitates penetration into the soil and extraction of samples, enabling rapid acquisition of uniform and neat soil column samples.
Q2: What are the advantages of the heart-shaped design of the soil auger sampler with T handle?
A2: The heart-shaped structure enhances the cutting force when inserting into the soil, making sampling easier and reducing disturbance to the soil structure. It is suitable for soils of different hardness, especially for soil areas with abundant organic matter or moderate viscosity.
Q3: Can the design of the soil auger sampler with T-handle deep sampling be conducted?
A3: The sampling depth of a standard heart-shaped soil sampler is generally 15-30 centimeters, depending on the model and operating method. Some models can be equipped with extension rods for deeper sampling.
Tips: How to clean and maintain the soil auger sampler with T handle?
The soil sampler can obtain columnar samples with clear structure, which is suitable for scientific research experiments such as soil nutrient analysis, moisture determination, and organic matter detection. Firstly, press the sampler vertically into the soil, then rotate and lift it gently. Finally, take out the sample and gently tap it with a tool or handle to make it fall.
- After each use, the attached soil should be removed;
- Rinse with water and thoroughly air dry;
- Regularly apply anti rust oil to extend its service life;
- Store in a dry environment.
