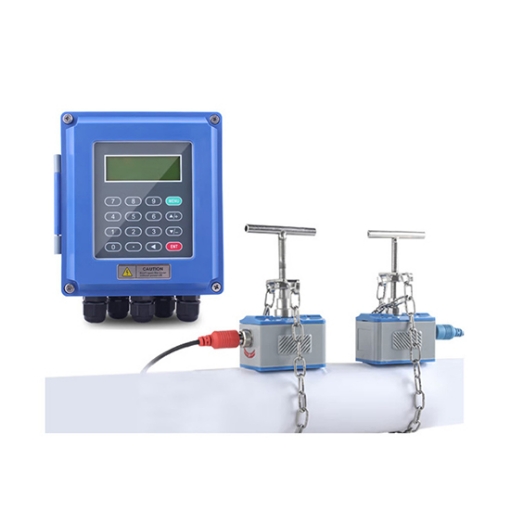

The split typeultrasonic water meter can be used immediately after sticking it without breaking the pipe. It is easy to install and locate, and is widely used in fields related to rivers, water supply, factories, urban sewage pipes, etc.
Full-caliber High-precision Wide-range Monitoring Solution
- The measurement range is large. Different types of sensors can be selected to measure the flow rate of pipelines with a diameter of DN15-DN6000mm. The linearity of the measurement is better than 0.5%, the repeatability accuracy is better than 0.2%, and the measurement accuracy is better than ±1%, which meets the needs of industrial-grade flow monitoring.
- The probe has low power consumption, no need to cut the pipe to open holes for installation, simple and efficient positioning, and is widely used in fields related to rivers, water supply, factories, urban sewage pipes, etc.
- The wall-mounted ultrasonic water flow meter has strong reliability and adopts a low-voltage multi-pulse emission circuit to greatly improve the measurement accuracy, service life, and reliability. It not only improves the measurement accuracy, but also significantly enhances the service life and overall reliability of the equipment.
Fully Protected Anti-interference Intelligent Monitoring System
- The water flow indicator has strong anti-interference ability and adapts to complex environments. It adopts a dual-balanced signal differential emission and receiving circuit to effectively resist strong interference sources such as frequency converters, TV towers, high-voltage lines, etc., ensuring stable and accurate operation in various industrial sites.
- ABS electrical interface, waterproof and dustproof, not easily aged and cracked, and long service life. SMT fully automatic patch circuit, high quality, high performance, and more accurate readings.
- The liquid flow meter uses a high-definition LCD display witha backlight display, which makes reading convenient and intuitive. The P67 protection grade housing is durable.
Application
SISCO flow meter calculates the mass flow rate of the fluid based on the power required to maintain the constant temperature difference. Thermal mass flow meters are commonly used in applications where precise measurement of gas flow is required, such as in biotechnology, medical equipment, scientific research, chemical and petrochemical industries.
Medical Equipment
Scientific Research
Petrochemical Industry
Biotechnology
Â
| Model | SISCO-FLOW-SZLM3 | ||
| Measuring Range | DN 32~100 | DN 50~700 | DN 300~6000 |
| Fluid Temperature | -30~90℃ | ||
| Measurement Accuracy | ±1% | ||
| Repeatability | Better than 0.2% | ||
| Measurement Range | 0~±10m/s | ||
| Working Power Supply | isolation DC 8~36V or AC 85~264V | ||
| Power Consumption | 50mA (The keyboard is not connected and the buzzer does not sound.) | ||
| Pressure Level | 1.6MPa | ||
| Packaged Dimension | 380mm×280mm×140mm | ||
| Packaged Weight | 2.9kg | ||
| Small Probe | Dimension | 45mm×25mm×32mm | |
| Weight | 60g | ||
| Medium Probe | Dimension | 64mm×39mm×44mm | |
| Weight | 190g | ||
| Large Probe | Dimension | 97mm×54mm×53mm | |
| Weight | 400g | ||
Structure Diagram
Q1:Â What is a flow meter used for?
A1: A flow meter is a device used to measure the flow rate of liquids or gases in a pipeline. It provides real-time data such as instantaneous flow and totalized flow, helping users monitor, control, and optimize industrial processes in water treatment, HVAC systems, chemical processing, and other applications.
Q2: What types of flow meters are commonly used in industry?
A2:Â During the production of a flow meter, several steps are required such as coil winding, lining processing, and electrode assembly. This series of operations can cause a certain amount of error and dispersion in the device, so a calibration process is required to correct the accuracy.
Q3:Â How do I choose the right flow meter for my application?
A3: Common types of flow meters include ultrasonic flow meters, electromagnetic flow meters, turbine flow meters, and differential pressure flow meters. Each type is designed forÂ
different media and working conditions, with ultrasonic flow meters being widely used due to their non-invasive installation and high measurement accuracy.
Tips: Advantages of Clamp-on Ultrasonic Flow Meter
The portable ultrasonic flow meter adopts non-contact measurement, can be installed without damaging the pipeline, supports pressure operation, and greatly reduces installation and maintenance costs and the risk of medium leakage; it has a wide range of coverage and can adapt to a variety of media and pipeline materials. It is easy to install and maintain without affecting production. It can not only provide accurate flow data to optimize processes and costs, but also assist in leak detection.
